Description
When it comes to on-counter scanning, the 2-D imager-based DS7708 offers a feature set that puts it at the top of its class for performance, ease of use, easy deployment and total cost of ownership. With a field of view that is over 50 percent larger than the competition, barcodes are easily captured, regardless of where they are located on an item. No matter what barcodes appear at your POS, the DS7708 can scan them all - 1-D, 2-D, printed and electronic. The result? Your cashiers can scan items as fast as they can slide them past the scan window for lightning fast checkout. The compact design makes installation a breeze, even in the most space constrained checkout lanes. And extraordinary durability minimizes costs and protects uptime, maximizing device lifecycle - and your return on investment.

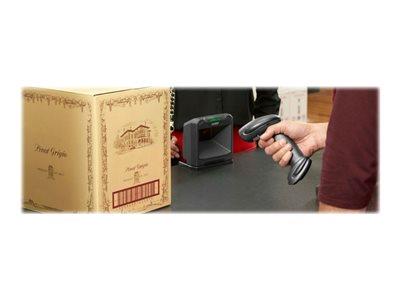

Highlights of the Zebra DS7708 Vertical Slot Scanner
- Scan virtually any barcode
- PRZM intelligent imaging
- Largest field of view in its class
- Superior durability
- Virtually invisible illumination
- Power through a single USB port
- Image capture support
- Smart auto-host cables
- Over 90 international keyboards supported
-
Scan virtually any barcode
First time, every time scanning of 1-D and 2-D traditional and electronic barcodes. -
PRZM intelligent imaging
Resets the bar for 2-D imaging by improving decode performance and snappiness and dramatically improving the user experience. -
Largest field of view in its class
A field of view that is over 50 percent larger than the competition enables easy capture of barcodes regardless of where they are on an item. -
Superior durability
Recessed scan window prevents marks and scratches, and electronic components conveniently located at the top of the device to protect damage in the case of a spill. -
Virtually invisible illumination
The LEDs are recessed behind the scan window, where they are barely visible and won't disturb customers or cashiers. -
Power through a single USB port
No additional power supply is required when connecting via USB, reducing accessory, installation and management costs. -
Image capture support
Capture images and signatures to support value-added applications that can improve productivity. -
Smart auto-host cables
Automatically determine which interface is attached, eliminating the need to scan numerous configuration barcodes. -
Over 90 international keyboards supported
Enables easy setup all around the world.
Specifications
Summary
- Product Description
- Symbol DS7708-SR - barcode scanner
- Type
- Barcode scanner - desktop - USB - decoded
- Colour
- Midnight black
- Minimum Bar Width
- 3 mil
- Scan Element Type
- 2D imager
- Sensor Resolution
- 1280 x 960
- Scan Speed
- 2540 mm / sec
- Connectivity Technology
- Wired
- Dimensions (WxDxH)
- 14.9 cm x 9.7 cm x 14.3 cm
- Weight
- 500 g
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Type
- Barcode scanner - desktop
- Colour
- Midnight black
Barcode
- Interface Type
- USB
- Minimum Bar Width
- 3 mil
- Scan Element Type
- 2D imager
- Sensor Resolution
- 1280 x 960
- Light Source Wave Length
- 660 nm
- Scan Mode
- Single-pass
- Scan Speed
- 2540 mm / sec
- Max Working Distance
- 26.1 cm
- Skew (Degrees)
- 70
- Pitch (Degrees)
- 70
- Print Contrast Signal (PCS)
- 25%
- Decode Capability
- EAN/JAN, Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code
- TTL Decoding
- Decoded
- Connectivity Technology
- Wired
- OK Notification
- Beeper, LED indicator
- Features
- Checkpoint Electronic Article Surveillance (EAS)
Expansion / Connectivity
- Interfaces
- 1 x USB
Miscellaneous
- Cables Included
- 1 x USB cable - external
- Compliant Standards
- EN 61000-4-2, IP52
Dimensions & Weight
- Width
- 14.9 cm
- Depth
- 9.7 cm
- Height
- 14.3 cm
- Weight
- 500 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 85% (non-condensing)
- Drop Specification
- 1.5 m to concrete
