Description
Marketing description is not available.

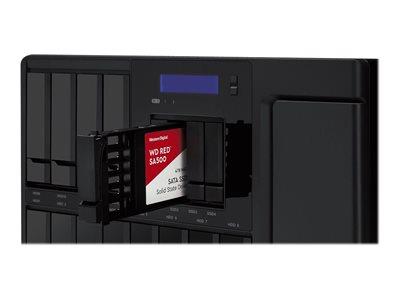

Highlights of the WD 4TB Red SA500 2.5" 7mm SATA 6Gb/s SSD
- Superior endurance for 24x7 environments
- Purpose-built for NAS with proven Western Digital 3D NAND
- Reduced latency, improved responsiveness for demanding applications
- 2.5" and M.2 form factors fit modern NAS slots
Specifications
Summary
- Product Description
- WD Red SA500 NAS SATA SSD WDS400T1R0A - solid state drive - 4 TB - SATA 6Gb/s
- Type
- Solid state drive - internal
- Capacity
- 4 TB
- Form Factor
- 2.5"
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 600 MBps
- Features
- 24x7 continuous operation, 3D NAND Technology
- Dimensions (WxDxH)
- 69.85 mm x 100.2 mm x 7 mm
- Weight
- 57.9 g
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Solid state drive - internal
- Capacity
- 4 TB
- Form Factor
- 2.5"
- Interface
- SATA 6Gb/s
- Features
- 24x7 continuous operation, 3D NAND Technology
- Width
- 69.85 mm
- Depth
- 100.2 mm
- Height
- 7 mm
- Weight
- 57.9 g
Performance
- SSD Endurance
- 2500 TB
- Drive Transfer Rate
- 600 MBps (external)
- Internal Data Rate
- 560 MBps (read) / 530 MBps (write)
- 4KB Random Read
- 95000 IOPS
- 4KB Random Write
- 82000 IOPS
Reliability
- MTBF
- 2,000,000 hours
- 24x7 Operation
- Yes
Expansion & Connectivity
- Interfaces
- 1 x SATA 6 Gb/s
- Compatible Bay
- 2.5"
Power
- Power Consumption
- 60 mW (active) , 3000 mW (read) , 3800 mW (write) , 56 mW (sleep) , 12 mW (DevSleep)
Miscellaneous
- Compliant Standards
- UL, TUV, VCCI, BSMI, FCC, KC, Morocco
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
- Min Storage Temperature
- -55 °C
- Max Storage Temperature
- 85 °C
- Shock Tolerance (non-operating)
- 1500 g @ 0.5 ms half-sine
- Vibration Tolerance (operating)
- 5 g @ 10-2000 Hz
- Vibration Tolerance (non-operating)
- 4.9 g @ 7-800 Hz
