Description

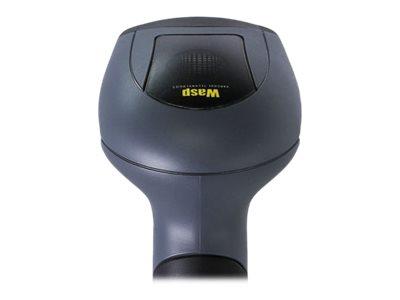

The Wasp WWS650 2D wireless barcode scanner is as affordable as it is reliable. This multitasking, wireless barcode scanner is capable of reading codes on mobile phones and other reflective devices. It is ideally suited for retail (POS, inventory, good receiving, etc.) and general commercial applications such as: access control for transportation and entertainment, banking, postal, and utility services.
Highlights of the WASP WWS650 2D Wireless Barcode Scanner (incl base)
- Rapidly and accurately scan 1D and 2D barcodes
- High speed, low power consumption eliminates the need to rescan
- Aggressive digital imager scan engine offers flexible read range
- Ergonomic design for additional comfort
- Improve productivity and prevent data-entry errors
- Simplify business processes while improving accuracy and efficiency
Specifications
Summary
- Product Description
- Wasp WWS650 - barcode scanner
- Type
- Barcode scanner - portable - Bluetooth 3.0
- Minimum Bar Width
- 4 mil
- Scan Field Width
- 0.5 cm - 35 cm
- Connectivity Technology
- Wireless
- Wireless Connectivity
- Bluetooth 3.0
- Dimensions (WxDxH)
- 16.3 cm x 9.1 cm x 4.1 cm
- Weight
- 200 g
Detailed Specification
General
- Type
- Barcode scanner - portable
Barcode
- Interface Type
- Bluetooth 3.0
- Minimum Bar Width
- 4 mil
- Scan Field Width
- 0.5 cm - 35 cm
- Light Source Wave Length
- 610-650 nm
- Max Working Distance
- 35 cm
- Skew (Degrees)
- 60
- Pitch (Degrees)
- 65
- Print Contrast Signal (PCS)
- 25%
- Decode Capability
- EAN/JAN, GS1 DataBar, QR code, MaxiCode, Aztec code, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, China Han Xin Code, UPC A Composite, UPC E Composite, Aztec Mesa
- Connectivity Technology
- Wireless
- OK Notification
- Beeper, LED indicator
- Features
- ESD (electrostatic discharge) safe
Networking
- Wireless Connectivity
- Bluetooth 3.0
Expansion / Connectivity
- Interfaces
- 1 x USB
Miscellaneous
- Compliant Standards
- FCC Part 15, RoHS, WEEE, IP42
Dimensions & Weight
- Width
- 16.3 cm
- Depth
- 9.1 cm
- Height
- 4.1 cm
- Weight
- 200 g
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Drop Specification
- 1.5 m to concrete
