Description
The Wasp WHC25 direct thermal wristband printer is designed to meet the needs for healthcare patient identification, hospitality, and event ticketing applications. Using direct thermal print technology, the WHC25 eliminates the need to purchase toner and ribbons, making it an easy-to-use, cost effective solution when compared to a laser printer. When printing wristbands with text, graphics, and barcodes the thermally embedded ink will not bleed or get ruined should it become damp.

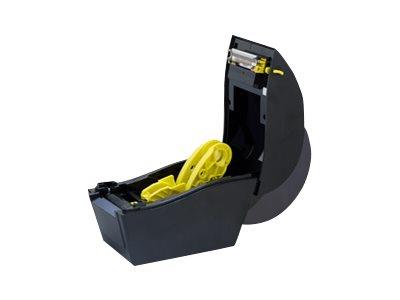

Highlights of the WASP WHC25 Desktop Wristband Printer
- Print long-lasting wristbands for patient identification, hospitality, and event ticketing
- Compact footprint ideal for space-constrained environments
- Direct thermal print technology eliminates costly toner or print ribbon purchases
- LCD screen allows for troubleshooting away from a PC
- Standalone print station configuration prints stored wristband designs should the network go down
- Direct thermal printing
- 203 dpi print resolution
- Print speed of up to 5 inches per second
- Compact clamshell design
- Easy media loading
- Internal Ethernet and USB connectivity
- Front LCD display
Specifications
Summary
- Product Description
- Wasp WHC25 Desktop Wristband Printer - label printer - B/W - direct thermal
- Printer Type
- Label printer - direct thermal - B/W
- Weight
- 1.2 kg
- Max Media Size
- Roll (5.2 cm)
- Min Media Size (Custom)
- 15 mm
- Max Media Size (Custom)
- 52 mm
- Max Resolution (B&W)
- 203 dpi
- Interface
- USB, LAN
- RAM Installed (Max)
- 8 MB SDRAM
- Flash Memory Installed (Max)
- 4 MB
- Card Reader
- Yes
- Language Simulation
- ZPL, EPL, WPL
- Barcodes
- Code 93, Code 39, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, China Post, Code 128B, Code 128C, Code 128A
- Fonts
- 9 fonts
- Styles & Effects
- Rotated text
- Networking
- Print server
- System Requirements
- Microsoft Windows 2000, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits)
- Manufacturer Warranty
- 2-year warranty
- Dimensions (WxDxH)
- 10.9 cm x 26 cm x 21 cm
Detailed Specification
General
- Printer Type
- Label printer - direct thermal - monochrome
Printer
- Built-in Devices
- Status LCD
- Connectivity Technology
- Wired
- Interface
- USB, LAN
- Max Resolution (B&W)
- 203 dpi
- Language Simulation
- ZPL, EPL, WPL
- Fonts
- 9 fonts
- Styles & Effects
- Rotated text
- Fonts Included
- 8 x bitmapped , 1 x scalable
- Barcodes
- Code 93, Code 39, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, China Post, Code 128B, Code 128C, Code 128A
RAM
- RAM Installed (Max)
- 8 MB
- Technology / Form Factor
- SDRAM
Flash Memory
- Flash Memory
- 4 MB
Card Reader
- Type
- Card reader
- Supported Flash Memory Cards
- microSD
Media Handling
- Max Media Size
- Roll (5.2 cm)
- Min Media Size (Custom)
- 15 mm
- Max Media Size (Custom)
- 52 mm
- Max Printing Width
- 52 mm
- Max Printing Length
- 2286 mm
- Roll Maximum Outer Diameter
- 16.5 cm
- Roll Core Diameter
- 25.4 mm, 38.1 mm
Networking
- Networking
- Print server
Expansion / Connectivity
- Connections
- 1 x USB 2.0 , 1 x LAN - RJ-45
Miscellaneous
- Cables Included
- 1 x USB cable
- Features
- Wall mountable
- Compliant Standards
- FCC Class B certified, TUV, cUL, C-Tick Class B, CCC
Power
- Power Device
- Power supply - internal
Software / System Requirements
- OS Required
- Microsoft Windows 2000, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits)
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 40 °C
Dimensions & Weight
- Width
- 10.9 cm
- Depth
- 26 cm
- Height
- 21 cm
- Weight
- 1.2 kg
