Description

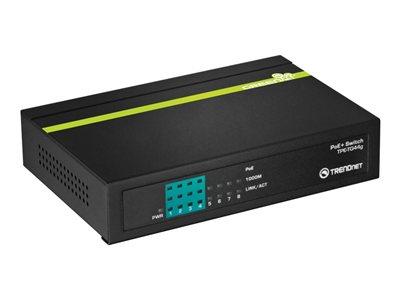

TRENDnet's 8-port Gigabit GREENnet PoE+ switch, model TPE-TG44g, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This unmanaged switch offers four Gigabit PoE+ and four Gigabit non-PoE ports. The PoE+ standard supplies up to 30 watts of power per port for devices such as high power wireless access points, PTZ Internet cameras, and VoIP telephony systems.
Auto sensing technology delivers 30 watts to 802.3at PoE+ devices, 15 watts to 802.3af PoE devices, and only data to non-PoE devices. GREENnet technology reduces energy consumption by up to 75% when the switch is not in use. Boost office efficiency and reduce network congestion with a total switching capacity of 16 Gbps. LED indicators display device status for efficient troubleshooting. This switch comes in a sturdy metal case and quickly adds PoE+, PoE, and non-PoE devices to your network.
Highlights of the TRENDnet 8-port Gigabit GREENnet PoE Switch
- IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant
- Supports PoE class 2, 3, and 4
- 4 x Gigabit auto-MDIX PoE/PoE+ ports
- 4 x Gigabit auto-MDIX ports
- Provides up to 30 watts for PoE+
- Provides up to 15.4 watts for PoE
- Automatically detects the PoE class level of a powered device
- 16 Gbps switching fabric
- Forwarding rate: 1000 Mbps, 100 Mbps, 10 Mbps
- Status LEDs: system power, PoE, 1000 Mbps, and link/activity
- 1K Mac address entries
- 96 Kbyte memory buffer
- Full wire-speed non-blocking reception and transmission
- Store-and-forward switching method
- Back pressure flow control for half-duplex mode
- IEEE 802.3x flow control for full-duplex mode
- Power saving technology powers down unused ports and when a connected device is in standby mode
- Jumbo frame support up to 9K
- Plug and Play
- Sturdy metal case
Specifications
Summary
- Product Description
- TRENDnet TPE TG44g - switch - 8 ports
- Device Type
- Switch - 8 ports
- Subtype
- Gigabit Ethernet
- Ports
- 4 x 10/100/1000 (PoE+) + 4 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- Performance
- Switching capacity: 16 Gbps , Forwarding performance: 1488000 pps
- MAC Address Table Size
- 1K entries
- Jumbo Frame Support
- 9KB
- Features
- Flow control, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, GREENnet technology, Energy Efficient Ethernet, 96KB packet buffer
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 14.2 cm x 9.5 cm x 3 cm
- Weight
- 380 g
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Ports
- 4 x 10/100/1000 (PoE+) + 4 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- Performance
- Switching capacity: 16 Gbps , Forwarding performance: 1488000 pps
- MAC Address Table Size
- 1K entries
- Jumbo Frame Support
- 9KB
- Features
- Flow control, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, GREENnet technology, Energy Efficient Ethernet, 96KB packet buffer
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Status Indicators
- Port transmission speed, power, PoE, link/activity
Expansion / Connectivity
- Interfaces
- 4 x 1000Base-T RJ-45 PoE+ , 4 x 1000Base-T RJ-45
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 65 Watt
Miscellaneous
- Compliant Standards
- Plug and Play, FCC
Dimensions & Weight
- Width
- 14.2 cm
- Depth
- 9.5 cm
- Height
- 3 cm
- Weight
- 380 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 90 °C
