Description

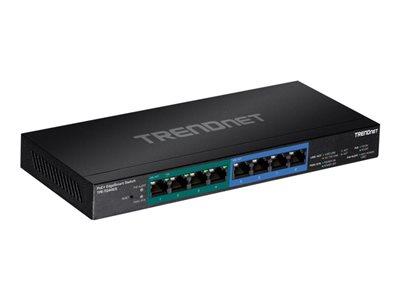

TRENDnet's 8-Port Gigabit EdgeSmart PoE+ Switch, model TPE-TG44ES, is a cost-effective switch solution for high-speed gigabit PoE+ applications. This EdgeSmart switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, troubleshooting, access controls, and monitoring. TRENDnet's TPE-TG44ES provides four gigabit PoE+ and four gigabit non-PoE ports. The PoE+ standard supplies up to 30W of power per port for devices such as high power wireless access points, PTZ (Pan Tilt Zoom) Internet cameras, and VoIP telephony systems.
Highlights of the TRENDnet 8-Port Gigabit EdgeSmart PoE+ Switch (4 PoE+, 4 Non-PoE)
- PoE power
- EdgeSmart management
- Integration flexibility
-
PoE power
A 60W PoE power budget supports up to four Power over Ethernet devices. -
EdgeSmart management
Provides an easy to use web-based GUI management for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment. -
Integration flexibility
Managed features include VLAN, IGMP Snooping, and QoS for flexible network integration.
Specifications
Summary
- Product Description
- TRENDnet TPE TG44ES - switch - 8 ports
- Device Type
- Switch - 8 ports
- Subtype
- Gigabit Ethernet
- Ports
- 4 x 10/100/1000 (PoE+) + 4 x 10/100/1000
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 60 W
- Performance
- Switching capacity: 16 Gbps , Forwarding performance: 11.9 Mpps
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 9KB
- Features
- IGMP snooping, port mirroring, firmware upgradable, Weighted Fair Queuing (WFQ), Quality of Service (QoS), reset button, fanless, over-current protection, short circuit protection, loop prevention, link aggregation trunking, Strict Priority (SP), tagged VLAN, Storm Control, rate limit, DLF (Destination Lookup Failure)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 24 cm x 10.5 cm x 2.7 cm
- Weight
- 576 g
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports
- Enclosure Type
- Desktop, wall-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 4 x 10/100/1000 (PoE+) + 4 x 10/100/1000
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 60 W
- Performance
- Switching capacity: 16 Gbps , Forwarding performance: 11.9 Mpps
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 9KB
- Features
- IGMP snooping, port mirroring, firmware upgradable, Weighted Fair Queuing (WFQ), Quality of Service (QoS), reset button, fanless, over-current protection, short circuit protection, loop prevention, link aggregation trunking, Strict Priority (SP), tagged VLAN, Storm Control, rate limit, DLF (Destination Lookup Failure)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az
- Status Indicators
- Port status, power, PoE
Expansion / Connectivity
- Interfaces
- 4 x 1000Base-T RJ-45 PoE+ , 4 x 1000Base-T RJ-45
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 65.28 Watt
Miscellaneous
- MTBF
- 1,089,244 hours
- Compliant Standards
- FCC, RoHS, RoHS 2011/65/EU, EN 61000-3-3:2013, EN 55024:2010, EMC 2014/30/EU, EN 61000-3-2:2014, Directive 2014/35/EU, EN 55032:2015, AS/NZS CISPR32:2013, REACH 2006/1907
Software / System Requirements
- Software Included
- Drivers & Utilities
Dimensions & Weight
- Width
- 24 cm
- Depth
- 10.5 cm
- Height
- 2.7 cm
- Weight
- 576 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime , Limited warranty - power supply and fans - 1 year
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 90% (non-condensing)
