Description
TPE-S44 Wireless PoE Access Point is today's link to Wireless Technology. Compliant with the IEEE Wireless Networking Standard 802.11g, it provides Direct Sequence Spread Spectrum (DSSS) operation for transparent bridging and roaming capabilities for wireless nodes. The TPE-S44 also provides WDS bridging functions, allowing users to connect two or more Access Points together, wirelessly. With this Wireless Access Point and Wireless Network Adapters, users can connect to Ethernet/Fast Ethernet LAN at home or office to access network resources with coverage up to 300 meters.

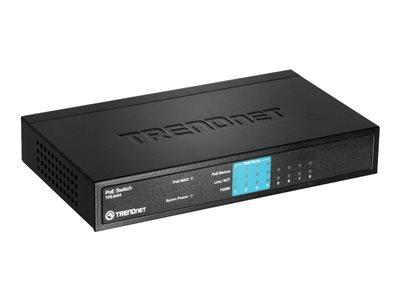

Highlights of the TRENDnet 8-Port 10/100Mbps PoE Switch
- Reduces equipment cost by delivering data and power over existing network cables
- 4 PoE (Port 1 ~ Port 4) and 4 standard 10/100Mbps ports
- Flow Control for Full-Duplex mode
- IEEE 802.3af Power over Ethernet (PoE) Standard Compliant
- Supports PoE Power Maximum 15.4 watts for each POE port
- Supports PoE Powered Device (PD) classification identify
- Full Wire-Speed Non-Blocking Reception and Transmission
- Store and Forward Switching Method
- 96Kbytes RAM Data Buffer and 1K entries MAC Address Table
- Extensive Diagnostic LEDs on the Front Panel
- IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode
Specifications
Summary
- Product Description
- TRENDnet TPE-S44 - switch - 8 ports
- Device Type
- Switch - 8 ports
- Subtype
- Fast Ethernet
- Ports
- 4 x 10/100 (PoE) + 4 x 10/100
- Power Over Ethernet (PoE)
- PoE
- Performance
- Switching capacity: 1.6 Gbps
- MAC Address Table Size
- 1K entries
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, PoE overcurrent protection, PoE circuit sorting protection
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x
- Dimensions (WxDxH)
- 17.1 cm x 9.8 cm x 2.9 cm
- Weight
- 430 g
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports
- Enclosure Type
- Desktop
- Subtype
- Fast Ethernet
- Ports
- 4 x 10/100 (PoE) + 4 x 10/100
- Power Over Ethernet (PoE)
- PoE
- Performance
- Switching capacity: 1.6 Gbps
- MAC Address Table Size
- 1K entries
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, PoE overcurrent protection, PoE circuit sorting protection
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x
- Status Indicators
- Port status, power, link/activity
Expansion / Connectivity
- Interfaces
- 4 x 100Base-TX RJ-45 , 4 x 100Base-TX RJ-45 PoE - 15.4 W
Power
- Power Device
- External power adapter
- Power Consumption Operational
- 36.3 Watt
Miscellaneous
- Compliant Standards
- FCC
Dimensions & Weight
- Width
- 17.1 cm
- Depth
- 9.8 cm
- Height
- 2.9 cm
- Weight
- 430 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -10 °C
- Max Storage Temperature
- 70 °C
