Description

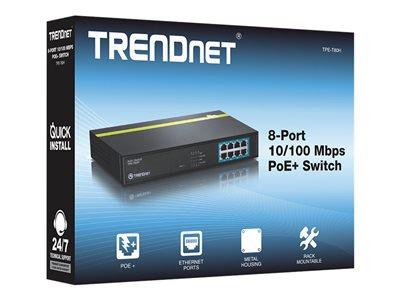

The 8-port 10/100 Mbps PoE+ switch, model TPE-T80H, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as access points and IP cameras. It supplies up to 30 Watts of power per port with a 125 Watt power budget.
Highlights of the TRENDnet 8-port 10/100Mbps PoE+ Switch
- 8 x 10/100 Mbps PoE+ ports
- Up to 30 Watts per port with a 125 W total power budget
- 1.6 Gbps switching capacity
- Use with TRENDnet's PoE splitter to network and power non-PoE devices
Specifications
Summary
- Product Description
- TRENDnet TPE T80H - switch - 8 ports - rack-mountable
- Device Type
- Switch - 8 ports
- Enclosure Type
- Rack-mountable
- Subtype
- Fast Ethernet
- Ports
- 8 x 10/100 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 125 W
- Performance
- Switching capacity: 1.6 Gbps , Forwarding performance (64-byte packet size): 1.19 Mpps
- MAC Address Table Size
- 4K entries
- Features
- Half duplex mode, full duplex mode, GREENnet technology, 1.25MB packet buffer
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 26.3 cm x 16 cm x 4.4 cm
- Weight
- 1.8 kg
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports
- Enclosure Type
- Rack-mountable
- Subtype
- Fast Ethernet
- Ports
- 8 x 10/100 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 125 W
- Performance
- Switching capacity: 1.6 Gbps , Forwarding performance (64-byte packet size): 1.19 Mpps
- MAC Address Table Size
- 4K entries
- Features
- Half duplex mode, full duplex mode, GREENnet technology, 1.25MB packet buffer
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
Expansion / Connectivity
- Interfaces
- 8 x 100Base-TX RJ-45 PoE+ - 30 W
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 130 Watt
Miscellaneous
- Rack Mounting Kit
- Included
- Compliant Standards
- FCC
Dimensions & Weight
- Width
- 26.3 cm
- Depth
- 16 cm
- Height
- 4.4 cm
- Weight
- 1.8 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 90% (non-condensing)
