Description

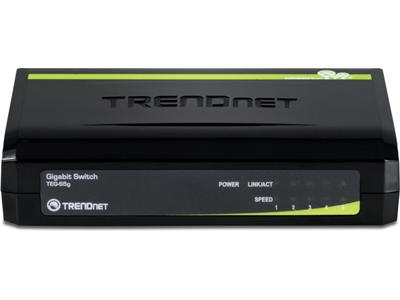

The compact 5-port Gigabit GREENnet Switch provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings.
Boost your office efficiency and eliminate network congestion with Gigabit speeds and total switching capacity of 10Gbps with Full-Duplex Mode. Plug and Play this desktop switch for reliable high-speed network connectivity.
Highlights of the TRENDnet 5-Port Gigabit GREENnet Switch
- 5 x 10/100/1000Mbps auto-negotiation, auto-MDIX Gigabit Ethernet ports
- Store-and-forward switching architecture with non-blocking wire-speed performance
- IEEE 802.3x flow control for full-duplex mode
- Back pressure flow control for half-duplex mode
- Integrated address look-up engine with 1K absolute MAC address table and 104KBytes RAM data buffering
- Operates and maximizes packet filtering and forwarding rate
- Jumbo frame support up to 9216bytes
- Diagnostic LEDs and Plug and Play
Specifications
Summary
- Product Description
- TRENDnet TEG S5g - switch - 5 ports - desktop
- Device Type
- Switch - 5 ports
- Enclosure Type
- Desktop
- Ports
- 5 x 10/100/1000
- MAC Address Table Size
- 1K entries
- Features
- Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, GREENnet technology, Jumbo Frames support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Environmental Standards
- ENERGY STAR Qualified
- Dimensions (WxDxH)
- 15 cm x 10.5 cm x 3.3 cm
- Weight
- 225 g
- Manufacturer Warranty
- 5 years warranty
Detailed Specification
General
- Device Type
- Switch - 5 ports
- Enclosure Type
- Desktop
- Ports
- 5 x 10/100/1000
- MAC Address Table Size
- 1K entries
- Features
- Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, GREENnet technology, Jumbo Frames support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- RAM
- 104 KB
- Status Indicators
- Link activity, power
Expansion / Connectivity
- Interfaces
- 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Power
- Power Device
- Power adapter - external
- Installed Qty
- 1
- Power Consumption Operational
- 3 Watt
- ENERGY STAR Qualified
- Yes
Miscellaneous
- Width
- 15 cm
- Depth
- 10.5 cm
- Height
- 3.3 cm
- Weight
- 225 g
- Compliant Standards
- Plug and Play, FCC, RoHS
Manufacturer Warranty
- Service & Support
- 3 years warranty
- Service & Support Details
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90%
