Description

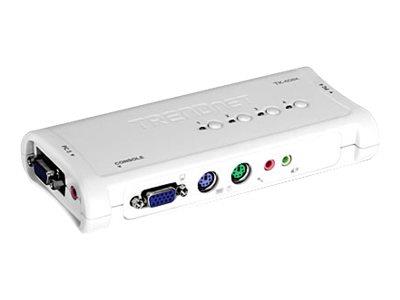

The 4-port PS/2 Audio KVM Switch lets you control multimedia PCs with just one keyboard, monitor, mouse, microphone and a set of speakers. The KVM switch not only allows you to share your monitor, keyboard and mouse but you can also share microphone and speakers. With just a simple press of a button, this KVM switch eliminates the hassle of cable swapping and switching between 4 PCs. With its Hot-Plug, Auto-Scan and Hot-Key operating features, the TK-408K is the perfect choice for managing 4 PCs. Separate KVM cables are included.
Highlights of the TRENDnet 4-Port PS/2 KVM Switch Kit w/Audio
- 4-port KVM switch with VGA and PS/2 connection to computers and audio device
- Listen to music from one computer while working on the other
- High quality 2048x1536 resolution for a crisp display
- All required cabling included
- Use one keyboard, monitor, and mouse to control four computer
- 4-PortPS/2 KVM switch with 1 set of MIC/Speaker port
- 4 sets of PS/2, VGA and audio & microphone cables
- Support Microsoft IntelliMouse, Optical Mouse, Logitech NetMouse and more
- Superior video quality up to 2048 x 1536 resolution
- Support Windows 98(SE)/ME/2000/XP/2003 server and Linux
- Hot-Plug feature, add PC or remove the connected PC for maintenance without powering down the KVM Switch or other PC's
- No software required, easy PC selection via push button or hot-key commands
- Auto-scan mode for monitoring PC's
- LED display for easy status monitoring
- PS/2Interface Power method
Specifications
Summary
- Product Description
- TRENDnet TK 408K - KVM / audio switch - 4 ports
- Device Type
- KVM / audio switch - 4 ports
- Subtype
- KVM
- Ports
- 4 x KVM / audio
- KVM Users Qty
- 1 local user
- Dimensions (WxDxH)
- 16.7 cm x 8 cm x 2.8 cm
- Weight
- 178 g
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- KVM / audio switch - 4 ports
- Enclosure Type
- Desktop
- Subtype
- KVM
- Ports
- 4 x KVM / audio
- KVM Local Users Qty
- 1 local user
- Keyboard / Mouse Interface
- PS/2
- Max Resolution
- 2048 x 1536
Expansion / Connectivity
- Interfaces
- 4 x mouse (PS/2) , 4 x keyboard (PS/2) , 4 x VGA HD-15 , 4 x audio mini-jack , 4 x microphone mini-jack , 1 x VGA HD-15 , 1 x keyboard (PS/2) , 1 x mouse (PS/2) , 1 x audio mini-jack , 1 x microphone mini-jack
Miscellaneous
- Cables Included
- 4 x keyboard / mouse / video cable , 4 x audio cable
- Compliant Standards
- RoHS
Dimensions & Weight
- Width
- 16.7 cm
- Depth
- 8 cm
- Height
- 2.8 cm
- Weight
- 178 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 90%
