Description

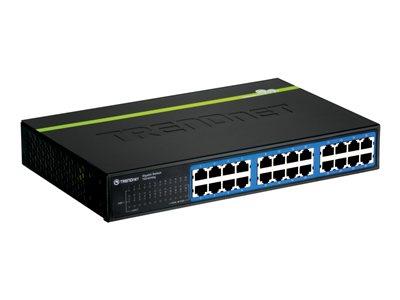

The 24-Port Gigabit GREENnet Switch, model TEG-S24Dg, provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70% .
GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.
Boost office network efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 48Gbps with full-duplex mode. A built in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.
Highlights of the TRENDnet 24-Port Gigabit GREENnet Desktop Switch
- On/off power switch
- Features a 48Gbps forwarding capacity
- Internal power supply reduces clutter
- IEEE 802.3az (draft 2.0) Energy Efficient Ethernet technology
- IEEE 802.3x flow control for full-duplex mode
- Back pressure flow control for half-duplex mode
- Store-and-forward switching architecture with non-blocking wire-speed performance
- Operates and maximizes packet filtering and forwarding rate
- Sturdy metal housing
- Diagnostic LEDs and Plug and Play support
Specifications
Summary
- Product Description
- TRENDnet TEG S24Dg - switch - 24 ports
- Device Type
- Switch - 24 ports
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000
- Performance
- Switching fabric bandwidth: 48 Gbps
- MAC Address Table Size
- 8K entries
- Features
- Flow control, full duplex capability, auto-uplink (auto MDI/MDI-X), packet filtering, store and forward, GREENnet technology, Jumbo Frames support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 28 cm x 18 cm x 4.4 cm
- Weight
- 1.7 kg
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Switch - 24 ports
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000
- Performance
- Switching fabric bandwidth: 48 Gbps
- MAC Address Table Size
- 8K entries
- Features
- Flow control, full duplex capability, auto-uplink (auto MDI/MDI-X), packet filtering, store and forward, GREENnet technology, Jumbo Frames support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
- RAM
- 512 KB
- Built-in Devices
- Led panel
- Status Indicators
- Port transmission speed, power, link/activity
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 13 Watt
Miscellaneous
- Cables Included
- 1 x power cable
- Compliant Standards
- Plug and Play, FCC
Dimensions & Weight
- Width
- 28 cm
- Depth
- 18 cm
- Height
- 4.4 cm
- Weight
- 1.7 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 90% (non-condensing)
