Description

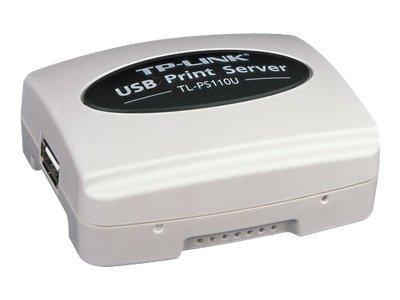

The TP-LINK TL-PS110U print server allows you to take the computer out of the loop while setting up a printing network. All that is needed is to connect the TL-PS110U to a printer via the USB port, connect the print server to your LAN, and you will be able to access your printer from any computer on the LAN.
Highlights of the TP LINK Single USB 2.0 Port Fast Ethernet Print Server
- Complies with IEEE 802.3 and 802.3u
- 1 USB 2.0 (high speed)-compliant port, 1 Fast Ethernet RJ-45 Port (10/100Mbps auto sensing)
- Supports DHCP (client)
- Supports E-mail Alert
- Supports Internet Printing Protocol (IPP) and SMB
- Supports print job log
- Supports bi-directional function
- Supports telnet, PSAdmin, SNMP, Web, HP Web JetAdmin / HP JetAdmin management
- Supports POST (Power On Self Test)
- Supports firmware upgrade
Specifications
Summary
- Product Description
- TP-Link TL-PS110U - print server - USB 2.0
- Device Type
- Print server
- Form Factor
- External
- Interface (Bus) Type
- USB 2.0
- Dimensions (WxDxH)
- 7.3 cm x 6.5 cm x 3 cm
- Cabling Type
- Ethernet 10Base-T, Ethernet 100Base-TX
- Data Link Protocol
- 10Mb LAN, 100Mb LAN
- Network / Transport Protocol
- TCP/IP, IPX/SPX, AppleTalk, NetBEUI/NetBIOS, LPR/LPD, RAW, SMB
- RAM
- 2 MB
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, USB 2.0
- System Requirements
- UNIX, Novell NetWare 3.12 or later, Apple MacOS 8.0 or later, Linux, Microsoft Windows NT, Microsoft Windows 95/98/ME/2000/XP/Vista
Detailed Specification
General
- Device Type
- Print server
- Form Factor
- External
- Interface (Bus) Type
- USB 2.0
Networking
- Connectivity Technology
- Wired
- Cabling Type
- Ethernet 10Base-T, Ethernet 100Base-TX
- Data Link Protocol
- Ethernet, Fast Ethernet
- Network / Transport Protocol
- TCP/IP, IPX/SPX, AppleTalk, NetBEUI/NetBIOS, LPR/LPD, RAW, SMB
- Remote Management Protocol
- SNMP, Telnet, IPP, HTTP
- Status Indicators
- Port status, port transmission speed, status
- Features
- Auto-sensing per device, DHCP support, E-mail alert, firmware upgradable
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, USB 2.0
Processor / Memory
- RAM
- 2 MB
- Flash Memory
- 1 MB
Expansion / Connectivity
- Connections
- 1 x USB 2.0 - 4 pin USB Type A , 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45
Miscellaneous
- Compliant Standards
- FCC
Software / System Requirements
- OS Required
- UNIX, Novell NetWare 3.12 or later, Apple MacOS 8.0 or later, Linux, Microsoft Windows NT, Microsoft Windows 95/98/ME/2000/XP/Vista
Dimensions & Weight
- Width
- 7.3 cm
- Depth
- 6.5 cm
- Height
- 3 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 0 - 70%
