Description
Marketing description is not available.

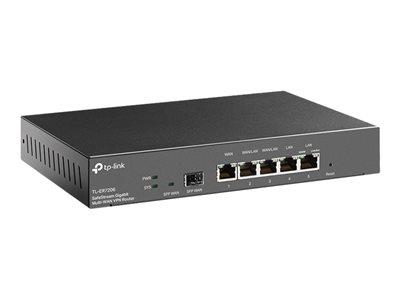

Highlights of the TP LINK SafeStream TL-ER7206 Gigabit Multi-WAN VPN Router
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), centralized cloud management, and intelligent monitoring
- Centralized management: ?loud access and Omada app for ultra-convenience and easy management
- Gigabit ports: one gigabit SFP and five gigabit RJ45 ports provide high-speed wired connectivity
- Up to four WAN ports: one gigabit SFP WAN port, one gigabit RJ45 WAN port, two gigabit WAN/LAN ports optimize bandwidth usage
- Highly secure VPN: supports up to 100x LAN-to-LAN IPsec, 50x OpenVPN, 50x L2TP, and 50x PPTP VPN connections
- Abundant security features: advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data
Specifications
Summary
- Product Description
- TP-Link SafeStream TL-ER7206 - V1 - router - desktop
- Device Type
- Router
- Enclosure Type
- Desktop
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance
- VPN unencrypted throughput (PPTP): 1.3793 Gbps , VPN encrypted throughput (PPTP): 115.6 Mbps , VPN unencrypted throughput (L2TP): 1.3603 Gbps , VPN encrypted throughput (L2TP): 202.3 Mbps , VPN throughput (128-bit AES IPSec): 291.6 Mbps , Routing throughput (1518-byte packet size): 81274 pps , Upload forwarding rate (66-byte packet size): 486918pps , Download forwarding rate (66-byte packet size): 488372 pps , NAT upload throughput (PPTP): 918.9 Mbps , NAT download throughput (PPTP): 914.7 Mbps , NAT upload throughput (L2TP): 918 Mbps , NAT download throughput (L2TP): 917.9 Mbps , NAT upload throughput (PPPoE): 939.7 Mbps , NAT download throughput (PPPoE): 937.9 Mbps , NAT upload throughput (DHCP): 940.3 Mbps , NAT download throughput (DHCP): 940.4 Mbps
- Capacity
- New sessions per second: 5500 , Concurrent connections: 150000
- Network / Transport Protocol
- TCP/IP, PPTP, L2TP, NTP, IPSec, PPPoE, DHCP, DNS, HTTP, HTTPs
- Routing Protocol
- IGMPv2, static IP routing, IGMPv3
- Remote Management Protocol
- SNMP 1, SNMP 3, SNMP 2c, ICMP
- VoIP Protocols
- H.323, SIP
- Features
- NAT support, Syslog support, URL filtering, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), virtual server support, DHCP server, reset button, bandwidth control, port triggering, IP-MAC binding, Generic Attribute Registration Protocol (GARP), Captive Portal, ARP inspection, 4KV Surge protection, network diagnostics, Web Filtering, policy based routing, Perfect Forward Secrecy (PFS), Zero-touch provisioning (ZTP), L2TP support, DynDNS, schedule reboot, OpenVPN server, Block TCP Flood, Black UDP Flood
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, UPnP
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 22.6 cm x 13.1 cm x 3.5 cm
- System Requirements
- UNIX, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10
Detailed Specification
General
- Device Type
- Router
- Enclosure Type
- Desktop
- Connectivity Technology
- Wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance
- VPN unencrypted throughput (PPTP): 1.3793 Gbps , VPN encrypted throughput (PPTP): 115.6 Mbps , VPN unencrypted throughput (L2TP): 1.3603 Gbps , VPN encrypted throughput (L2TP): 202.3 Mbps , VPN throughput (128-bit AES IPSec): 291.6 Mbps , Routing throughput (1518-byte packet size): 81274 pps , Upload forwarding rate (66-byte packet size): 486918pps , Download forwarding rate (66-byte packet size): 488372 pps , NAT upload throughput (PPTP): 918.9 Mbps , NAT download throughput (PPTP): 914.7 Mbps , NAT upload throughput (L2TP): 918 Mbps , NAT download throughput (L2TP): 917.9 Mbps , NAT upload throughput (PPPoE): 939.7 Mbps , NAT download throughput (PPPoE): 937.9 Mbps , NAT upload throughput (DHCP): 940.3 Mbps , NAT download throughput (DHCP): 940.4 Mbps
- Capacity
- New sessions per second: 5500 , Concurrent connections: 150000
- Network / Transport Protocol
- TCP/IP, PPTP, L2TP, NTP, IPSec, PPPoE, DHCP, DNS, HTTP, HTTPs
- Routing Protocol
- IGMPv2, static IP routing, IGMPv3
- Remote Management Protocol
- SNMP 1, SNMP 3, SNMP 2c, ICMP
- Encryption Algorithm
- DES, MD5, MPPE, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, IKEv1, 3DES-168
- Features
- NAT support, Syslog support, URL filtering, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), virtual server support, DHCP server, reset button, bandwidth control, port triggering, IP-MAC binding, Generic Attribute Registration Protocol (GARP), Captive Portal, ARP inspection, 4KV Surge protection, network diagnostics, Web Filtering, policy based routing, Perfect Forward Secrecy (PFS), Zero-touch provisioning (ZTP), L2TP support, DynDNS, schedule reboot, OpenVPN server, Block TCP Flood, Black UDP Flood
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, UPnP, FCC, RoHS, EIA/TIA-568
- RAM
- 512 MB DDR3 SDRAM
- Flash Memory
- 128 MB
- Status Indicators
- Power, system, link/activity, speed
IP Telephony
- VoIP Protocols
- H.323, SIP
Expansion / Connectivity
- Interfaces
- WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN: 1 x Ethernet 1000 - SFP (mini-GBIC)
Power
- Power Device
- Internal power supply
- Installed Qty
- 1
- Voltage Required
- AC 120/230 V (50/60 Hz)
Software / System Requirements
- OS Required
- UNIX, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10
Dimensions & Weight
- Width
- 22.6 cm
- Depth
- 13.1 cm
- Height
- 3.5 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
