Description
Designed for workgroups and departments, T2500G-10TS provides full set of Layer 2 management features. It delivers maximum throughput where you need it - to high-performance workgroups at the edge of the network, or as a backbone for Gigabit switches and high-speed servers.

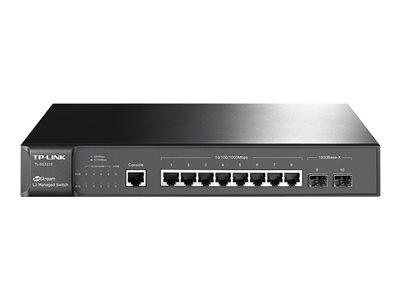

Highlights of the TP LINK JetStream 8-port Pure-Gigabit L2 Managed Switch
- Abundant L2 features
- Secure networking
- Advanced QoS features
-
Abundant L2 features
T2500G-10TS supports a complete lineup of L2 features. In addition, the switch provides advanced features for network maintenance. IGMP throttling & filtering restricts each subscriber on a port level to prevent unauthorized access. -
Secure networking
The T2500G-10TS provides advanced security to protect against broadcast storms, ARP attacks, and more. Moreover, the switch supports 802.1x authentication, which is used in conjunction with a RADIUS server to require some authentication information before access to the network is allowed. -
Advanced QoS features
To integrate voice, data and video service on one network, T2500G-10TS supports rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means, to ensure that voice and video are always clear, smooth and jitter free.
Specifications
Summary
- Product Description
- TP-Link JetStream T2500G-10TS - switch - 8 ports - Managed - rack-mountable
- Device Type
- Switch - 8 ports - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 + 2 x Gigabit SFP
- Performance
- Bandwidth: 20 Gbps , Packet forwarding rate: 14.9 Mpps
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, HTTP, TFTP, SSH, SSH-2, CLI
- Features
- Flow control, Layer 2 switching, DHCP support, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Dynamic ARP Inspection (DAI), fanless, Link Aggregation Control Protocol (LACP), Port Security, IP-MAC binding, SNMP trap, Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP)
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.3av
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 29.4 cm x 18 cm x 4.4 cm
Detailed Specification
General
- Device Type
- Switch - 8 ports - Managed
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 + 2 x Gigabit SFP
- Performance
- Bandwidth: 20 Gbps , Packet forwarding rate: 14.9 Mpps
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, HTTP, TFTP, SSH, SSH-2, CLI
- Encryption Algorithm
- TLS 1.0, SSL 3.0, SSL 2.0
- Authentication Method
- RADIUS
- Features
- Flow control, Layer 2 switching, DHCP support, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Dynamic ARP Inspection (DAI), fanless, Link Aggregation Control Protocol (LACP), Port Security, IP-MAC binding, SNMP trap, Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP)
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.3av
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 , 1 x console RJ-45 , 2 x 1000Base-X SFP , 1 x console (micro-USB)
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 8.38 Watt
Miscellaneous
- Included Accessories
- Rubber feet
- Rack Mounting Kit
- Included
- Compliant Standards
- FCC
Dimensions & Weight
- Width
- 29.4 cm
- Depth
- 18 cm
- Height
- 4.4 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
