Description
Marketing description is not available.

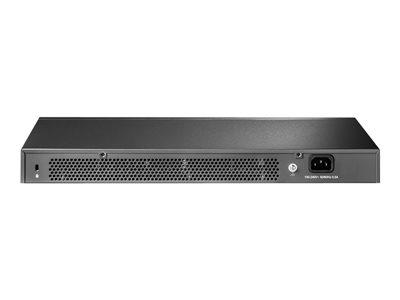

Highlights of the TP LINK JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP
- 10G lightning-fast uplink: 4x 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
- Gigabit speeds: 24x Gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring
- Centralized management: cloud access and Omada app for ultra-convenience and easy management
- Static routing: helps route internal traffic for more efficient use of network resources
- Robust security strategies: IP-MAC-Port Binding, ACL, Port Security, Dos Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimize voice and video applications: L2/L3/L4 QoS and IGMP snooping
- Standalone management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Specifications
Summary
- Product Description
- TP-Link JetStream TL-SG3428X - V1 - switch - 28 ports - Managed - rack-mountable
- Device Type
- Switch - 28 ports - Managed
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 4 x 10 Gigabit SFP+
- Performance
- Switching capacity: 128 Gbps , Packet forwarding rate: 95.23 Mpps
- Capacity
- Priority queues: 8 , VLAN groups: 4000
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, ICMP, DHCP, RSTP
- Features
- Flow control, VPN support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Cable Diagnostics Function, bandwidth control, Device Link Detection Protocol (DLDP) support, fanless, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, Multicast VLAN Registration (MVR), Neighbor Discovery Protocol (NDP), port isolation, 12MB packet buffer, Class of Service (CoS), Strict Priority (SP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, cloud managed, DiffServ Code Point (DSCP) support, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), dual image support, Software Defined Networking (SDN), Authentication, Authorization and Accounting (AAA), LLDP-MED, VLAN group, guest access, Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), BPDU Filter, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Advanced QoS, MAC Access Bypass (MAB), security slot (Kensington security lock compatible)
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 44 cm x 18 cm x 4.4 cm
Detailed Specification
General
- Device Type
- Switch - 28 ports - Managed
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 4 x 10 Gigabit SFP+
- Performance
- Switching capacity: 128 Gbps , Packet forwarding rate: 95.23 Mpps
- Capacity
- Priority queues: 8 , VLAN groups: 4000
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, ICMP, DHCP, RSTP
- Encryption Algorithm
- SSL 3.0, TLS 1.2
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Flow control, VPN support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Cable Diagnostics Function, bandwidth control, Device Link Detection Protocol (DLDP) support, fanless, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, Multicast VLAN Registration (MVR), Neighbor Discovery Protocol (NDP), port isolation, 12MB packet buffer, Class of Service (CoS), Strict Priority (SP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, cloud managed, DiffServ Code Point (DSCP) support, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), dual image support, Software Defined Networking (SDN), Authentication, Authorization and Accounting (AAA), LLDP-MED, VLAN group, guest access, Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), BPDU Filter, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Advanced QoS, MAC Access Bypass (MAB), security slot (Kensington security lock compatible)
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)
- Status Indicators
- Status
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45 , 4 x 10GBase-X SFP , 1 x console RJ-45 , 1 x micro-USB console
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 23.6 Watt
Miscellaneous
- Included Accessories
- Rubber feet
- Rack Mounting Kit
- Included
- Compliant Standards
- FCC, RoHS
Dimensions & Weight
- Width
- 44 cm
- Depth
- 18 cm
- Height
- 4.4 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
