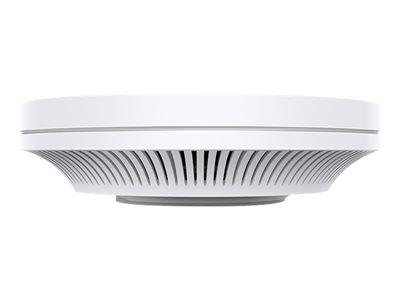

TP LINK EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point
Description
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.
Highlights of the TP LINK EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point
- Ultra-fast Wi-Fi 6 speeds
- High-density connectivity
- Integrated into Omada SDN
- Centralized management
- 2.5G port
- Seamless roaming
- PoE+ support
- Secure Guest Network
-
Ultra-fast Wi-Fi 6 speeds
Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds. -
High-density connectivity
4x increased capacity to connect more devices simultaneously. -
Integrated into Omada SDN
Zero-Touch Provisioning (ZTP)ยง, Centralized Cloud Management, and Intelligent Monitoring. -
Centralized management
Cloud access and Omada app for ultra-convenience and easy management. -
2.5G port
A 2.5 Gbps Ethernet port boosts total internet throughput. -
Seamless roaming
Even video streams and voice calls are unaffected as users move between locations. -
PoE+ support
Supports Power over Ethernet (802.3at) for convenient deployment and installation. -
Secure Guest Network
Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Specifications
Summary
- Product Description
- TP-Link EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point - radio access point - Wi-Fi 6
- Device Type
- Radio access point
- Form Factor
- Wall / ceiling mountable
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Frequency Band
- 2.4 GHz, 5 GHz
- Capacity
- Maximum number of configured SSIDs: 16
- Included Accessories
- Wall/ceiling mounting kit
- OS Required
- Linux, Microsoft Windows XP / Vista / 7 / 8 / 10
- Power Over Ethernet (PoE) Supported
- PoE
- Dimensions (WxDxH)
- 24.3 cm x 24.3 cm x 6.4 cm
Detailed Specification
General
- Device Type
- Radio access point
- Width
- 24.3 cm
- Depth
- 24.3 cm
- Height
- 6.4 cm
Networking
- Form Factor
- Wall / ceiling mountable
- Connectivity Technology
- Wireless
- Line Coding Format
- OFDM, 1024 QAM, OFDMA
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Spread Spectrum Method
- OFDMA
- Remote Management Protocol
- SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS
- Frequency Band
- 2.4 GHz, 5 GHz
- Capacity
- Maximum number of configured SSIDs: 16
- Wi-Fi Rating
- AX3600
- Features
- VLAN support, E-mail alert, MAC address filtering, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), SSH support, rogue access point detection, Captive Portal, Transmit Power Control (TPC), MU-MIMO technology, beamforming technology, band steering, rate limit, Wireless Scheduler, seamless roaming, Airtime Fairness, schedule reboot, load balance network mode
- Encryption Algorithm
- WPA-Enterprise, WPA2-Enterprise, WEP, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax
Aerial
- Antenna
- Internal
- Directivity
- Omni-directional
Expansion / Connectivity
- Interfaces
- 1 x 2.5 GBase-T (PoE) - RJ-45
Miscellaneous
- Included Accessories
- Wall/ceiling mounting kit
- Compliant Standards
- FCC, RoHS
Power
- Power Over Ethernet (PoE) Supported
- PoE
Software / System Requirements
- OS Required
- Linux, Microsoft Windows XP / Vista / 7 / 8 / 10
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
