Description

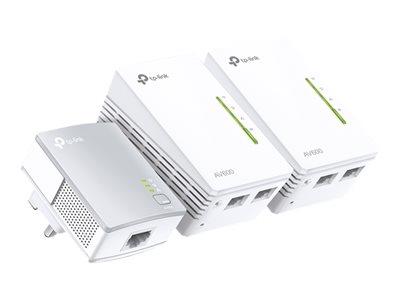

The powerline product TL-WPA4220T KIT transforms your home's existing electrical circuit into a high-speed network, and brings wired and wireless networks to anywhere there is a power outlet.
Highlights of the TP LINK AV600 2-Port Powerline Adapter
- Extend wired and wireless network to any room using existing electrical system
- Wi-Fi Clone button simplifies your Wi-Fi configuration and helps build a seamless unified home network
- HomePlug AV standard provides immense high-speed data transmission over a home's existing electrical wiring
- Ideal for lag-free HD or 3D video streaming and online gaming
- Extend wireless connections to previously hard-to-reach areas of your home and office
- Two fast Ethernet ports of every extender enable TL-WPA4220T KIT to run multiple high-speed and reliable wired connections for devices
-
High speeds and wide range
Using advanced HomePlug AV technology, TL-WPA4220T KIT provides stable and immense high-speed data transmissions for large ranges where there is a power outlet. No interference on electrical or electronic equipment. Stream in HD, game online and download large files without interruption thanks to reliable powerline links. -
One-touch Wi-Fi configuration
Instantly copy the wireless network name and password from your router by pressing the Wi-Fi Clone button. Besides, any changes made to the Wi-Fi settings of any unit will be automatically applied across the entire powerline network. -
Two fast Ethernet ports for reliable wired connections
With two Ethernet ports, the TL-WPA4220T KIT runs multiple high-speed and reliable wired connections at the same time for devices like smart TVs, PCs, and game consoles.
Specifications
Summary
- Product Description
- TP-Link TL-WPA4220T KIT - V4 - powerline adapter - 802.11b/g/n - wall-pluggable - with 2 x TP-Link TL-WPA4220
- Device Type
- Powerline adapter - with 2 x TP-Link TL-WPA4220
- Enclosure Type
- Wall-pluggable
- Data Link Protocol
- Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, HomePlug AV (HPAV)
- Frequency Band
- 2.4 GHz
- Data Transfer Rate
- 600 Mbps
- Features
- Wi-Fi Multimedia (WMM) support, Quality of Service (QoS)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, HomePlug AV
- Dimensions (WxDxH)
- 5.2 cm x 2.85 cm x 6.5 cm
- System Requirements
- Apple MacOS, Linux, Microsoft Windows 2003, Microsoft Windows 2000/XP/Vista/7/8
Detailed Specification
General
- Device Type
- Powerline adapter - with 2 x TP-Link TL-WPA4220
- Enclosure Type
- Wall-pluggable
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, HomePlug AV (HPAV)
- Frequency Band
- 2.4 GHz
- Data Transfer Rate
- 600 Mbps
- Max Range Indoors
- 300 m
- Encryption Algorithm
- 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK
- Features
- Wi-Fi Multimedia (WMM) support, Quality of Service (QoS)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, HomePlug AV, RoHS
- Status Indicators
- Power, LAN, link/activity
Line Properties
- Line Coding Format
- OFDM
Expansion / Connectivity
- Interfaces
- LAN: 1 x 10Base-T/100Base-TX - RJ-45 , 1 x HomePlug AV
Power
- Power Consumption Operational
- 12.302 Watt
Miscellaneous
- Cables Included
- 3 x network cable - 2 m
Software / System Requirements
- OS Required
- Apple MacOS, Linux, Microsoft Windows 2003, Microsoft Windows 2000/XP/Vista/7/8
Dimensions & Weight
- Width
- 5.2 cm
- Depth
- 2.85 cm
- Height
- 6.5 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
