Description

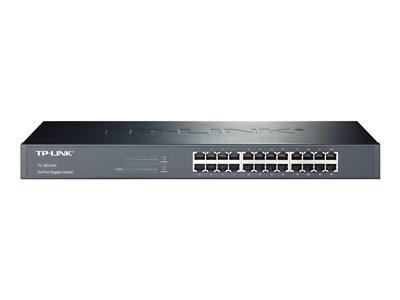

The TL-SG1024 is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link. Each port supports up to 2000Mbps throughput in full duplex mode. It is the perfect choice to improve the performance of offices and workgroup networks.
Highlights of the TP LINK 24-port Gigabit Switch
- 24 10/100/1000Mbps auto-negotiation Ethernet ports
- All ports support full/half duplex transfer mode for 10Mbps/100Mbps and full duplex transfer mode for 1000Mbps
- Supports Auto-MDI/MDIX function
- Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode
- Store and forward switching scheme
Specifications
Summary
- Product Description
- TP-Link TL-SG1024 - switch - 24 ports - rack-mountable
- Device Type
- Switch - 24 ports
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000
- Features
- Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 44 cm x 18 cm x 4.4 cm
Detailed Specification
General
- Device Type
- Switch - 24 ports
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000
- Features
- Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Status Indicators
- Power, 100M device connected, 1000M device connected, link/activity
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45
Power
- Voltage Required
- AC 120/230 V (50/60 Hz)
Dimensions & Weight
- Width
- 44 cm
- Depth
- 18 cm
- Height
- 4.4 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90%
