Description
Effortless capacity expansion for Synology FlashStation and RackStation solutions on-the-fly.
Easily add 24 additional drive bays to Synology FlashStation or RackStation. Supporting 2.5" SAS/SATA drives, the RX2417sas is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
Dual power supplies ensure continuous service uptime. Easily replace defective drives with the hot swappable drive trays.

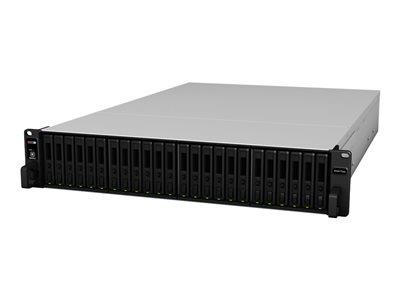

Highlights of the Synology RX2417SAS 24 Bay Rack Mountable
- Easily add 24 additional drive bays to Synology FlashStation or RackStation
- Supporting 2.5" SAS/SATA drives, the RX2417sas is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination
- Dual power supplies ensure continuous service uptime
- Easily replace defective drives with the hot swappable drive trays
-
24-bay 2.5" SAS/SATA expansion
Easily add 24 additional drive bays to Synology FlashStation or RackStation. Supporting 2.5" SAS/SATA drives, the RX2417sas is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination. -
Maximum reliability design
Dual power supplies ensure continuous service uptime. Easily replace defective drives with the hot swappable drive trays.
Specifications
Summary
- Product Description
- Synology RX2417sas - hard drive array
- Device Type
- Hard drive array
- Enclosure Type
- Rack-mountable - 2U
- Interface
- SAS
- Installed Devices / Modules Qty
- 0 (installed) / 24 (max)
- Supported Drives
- SATA-600 / SAS
- Storage Controller
- RAID (SATA 6Gb/s / SAS)
- Hard Drive
- No HDD - hot-swap
- Power
- AC 120/230 V - 50/60 Hz
- Power Redundancy
- Yes
- Dimensions (WxDxH)
- 48.2 cm x 72.4 cm x 8.8 cm
- Weight
- 16.6 kg
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Hard drive array
- Enclosure Type
- Rack-mountable - 2U
Chassis
- Installed Devices / Modules Qty
- 0
- Supported Devices / Modules Qty
- 24
- Supported Drives
- SATA-600 / SAS
Storage
- HDD Array External Interface
- SAS
Processor
- CPU
- No CPU
Storage Controller
- Type
- RAID
- Channel Qty
- 24
- Interface Type
- SATA 6Gb/s / SAS
Hard Drive
- Type
- No HDD - hot-swap
Expansion / Connectivity
- Expansion Bays
- 24 (total) / 24 (free) x hot-swap - 2.5"
- Interfaces
- 1 x SAS (input) , 1 x SAS (output)
Miscellaneous
- Cables Included
- 1 x mini SAS HD cable
- Compliant Standards
- FCC Class A certified, RoHS, BSMI Class A
Power
- Power Device
- 2 x internal power supply
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Voltage Required
- AC 120/230 V - 50/60 Hz
- Power Consumption Operational
- 201.6 Watt
- Power Provided
- 500 Watt
Dimensions & Weight
- Width
- 48.2 cm
- Depth
- 72.4 cm
- Height
- 8.8 cm
- Weight
- 16.6 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 5 - 95%
- Sound Emission
- 60.8 dBA
