Description
Save space and create an impressive display by wall-mounting a large TV in a boardroom or customer-facing area. This tilting flat-screen TV wall mount securely supports a TV up to 100"and features an attractive low-profile design.
Mount your large flat-screen TV in a location that's convenient for visitors, clients and employees. Create an engaging display to keep guests informed or entertained, ideal in lobbies, lecture halls, restaurants, health care centers and other meeting spaces.
The television wall mount supports most 60" to 100" (812.8 to 1778 mm) LED or LCD flat panel TVs weighing up to 165 lb. (75 kg). It also supports curved TVs, with a compatible VESA mount up to 900x600.
Find the ideal viewing angle. The tilting TV wall mount lets you tilt your display up (maximum 5 degrees) or down (maximum 10 degrees) with ease.
Save space with this slim TV wall mount. With its low-profile design, your TV sits just 3.3" (85 mm) from the wall.
The heavy-duty TV mounting bracket securely supports your large flat-screen TV and is easy to install. The spring locks allow quick attachment and release. The open architecture provides ventilation and easy access to wires.
Highlights of the StarTech.com TV Wall Mount - Tilting
- LARGE 100" TV WALL MOUNT: Heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 100inch (165lb/75kg) w/ a durable steel frame and a powder-coated finish
- EASY ADJUSTMENT: Tilting TV wall mount offers +5/-10° precise tilt; Tilt is adjustable by hand using the tilt adjustment knobs, making it easier to position larger displays for an ideal viewing angle
- COMPATIBILITY: Universal TV wall mount supports LG, Samsung and others (screws/spacers incl) & VESA hole patterns 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400, 600x600, 800x400, 800x600, 900x600
- EASY INSTALLATION: Features a hook-on bubble level for proper alignment; Click-in Spring Lock helps TV mounting brackets snap into place for added safety & can be released by pulling on the straps
- LOW PROFILE DESIGN: A low profile design that sits just 3.3" (85mm) from the wall to complement the professional look of ultra-thin flat screen LCD/LED televisions
-
Create an Engaging Display for Digital Signage
Mount your large flat-screen TV in a location that's convenient for visitors, clients and employees. Create an engaging display to keep guests informed or entertained, ideal in lobbies, lecture halls, restaurants, health care centers and other meeting spaces. The television wall mount supports most 60" to 100" (812.8 to 1778 mm) LED or LCD flat panel TVs weighing up to 165 lb. (75 kg). It also supports curved TVs, with a compatible VESA mount up to 900x600. -
Tilting Design for Optimal Viewing
Find the ideal viewing angle. The tilting TV wall mount lets you tilt your display up (maximum5 degrees) or down (maximum 10 degrees) with ease.
Specifications
Summary
- Product Description
- StarTech.com TV Wall Mount supports 60-100 inch VESA Displays (165lb/75kg), Heavy Duty Tilting Universal TV Wall Mount, Adjustable Mounting Bracket for Large Flat Screens, Low Profile - Slim TV Wall Mount (FPWTLTB1) - bracket - for TV
- Product Type
- Bracket - wall-mountable
- Dimensions (WxDxH)
- 62.5 cm x 95.4 cm x 8.5 cm
- Tilt
- -10° to 5°
- Adjustments
- Tilt
- Weight
- 3.5 kg
- Recommended Use
- TV
- Recommended Display Size
- 60"-100"
- VESA Mounting Interface
- 200 x 200 mm, 400 x 300 mm, 400 x 200 mm, 600 x 400 mm, 300 x 200 mm, 600 x 600 mm, 800 x 600 mm, 900 x 600 mm, 300 x 300 mm
- Max Load Weight
- 75 kg
- Material
- Plastic, steel
- Colour
- Black
- Package Content

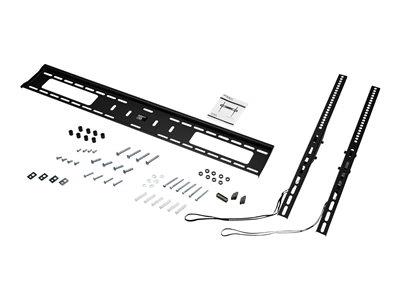

- 4 x M5x14 screws, 4 x M6x14 screws, 4 x M6x30 screws, 4 x M8x30 screws, 8 x spacers (small), 6 x concrete anchors, 4 x M8x50 screws, 4 x rectangular washers, 2 x vertical brackets, 8 x spacers (large), level, 6 x washers, 2 x tilt-adjustment knobs, 6 x wall screws
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Width
- 62.5 cm
- Depth
- 95.4 cm
- Height
- 8.5 cm
- Weight
- 3.5 kg
- Material
- Plastic, steel
- Colour
- Black
- Package Content
- 4 x M5x14 screws, 4 x M6x14 screws, 4 x M6x30 screws, 4 x M8x30 screws, 8 x spacers (small), 6 x concrete anchors, 4 x M8x50 screws, 4 x rectangular washers, 2 x vertical brackets, 8 x spacers (large), level, 6 x washers, 2 x tilt-adjustment knobs, 6 x wall screws
AV Furniture
- Type
- Bracket
- Recommended Use
- TV
- Placing / Mounting
- Wall-mountable
- VESA Mounting Interface
- 200 x 200 mm, 400 x 300 mm, 400 x 200 mm, 600 x 400 mm, 300 x 200 mm, 600 x 600 mm, 800 x 600 mm, 900 x 600 mm, 300 x 300 mm
- Recommended Display Size
- 60"-100"
- Tilt
- -10° to 5°
- Adjustments
- Tilt
- Max Load Weight
- 75 kg
Dimensions & Weight Details
- Shipping Dimensions (WxDxH) / Weight
- 3.7 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
