Description
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

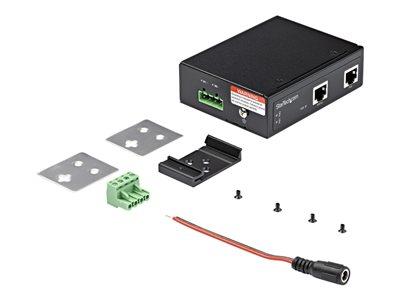

Highlights of the StarTech.com Industrial Gigabit PoE Injector 90W 802.3bt PoE++ UPoE
- WIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit PoE Injector compatible w/ IEEE 802.3bt (PoE++) & previous 90W proprietary POE standards including PoH (HDBase-T), Cisco uPoE, Bosch & AXIS
- 90W POWER BUDGET: Provides up to 90W of auto-negotiated power output for Type 3 and Type 4 PoE/Ultra/UPoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points
- TECH SPECS: 1 Gbps | 52V-56VDC Power Input | IEEE 802.3af | IEEE 802.3at | IEEE 802.3bt 90W max | PoH (HDBase-T) | uPoE | 10/100/1000 Mbps Auto Negotiation | DIN/Wall Mountable | Redundant Power Input
- ROBUST DESIGN: Industrial Power over Ethernet Injector w/MTBF of 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing | Hardened operating temp of -40C to 75C
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This PoE Injector is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
-
Flexible Configurations for a Variety of Applications
Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including PoH (HDBaseT), Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications. -
90 Watt Power Budget
As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points. -
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. • Vibration: EN 60068-2-6 • Shock: EN 60068-2-27 • Free-fall: EN 60068-2-32 500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability. The POEINJ1G90W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
Summary
- Product Description
- StarTech.com Industrial Gigabit PoE Injector, High Speed/High Power 90W, 802.3bt PoE++ 48V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter, -40C to +75C, Rugged, Gigabit PoE - 90W PoE++ Injector (POEINJ1G90W) - PoE injector - 90 Watt
- Device Type
- PoE injector - external
- Power Over Ethernet (PoE)
- PoE++
- Weight
- 174 g
- Output Voltage
- 48 - 56 V
- Power Capacity
- 90 Watt
- Output connectors
- 1 x RJ-45
- Included Accessories
- Mounting kit, terminal block
- Colour
- Black
- Dimensions (WxDxH)
- 3.2 cm x 8.2 cm x 10.4 cm
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- PoE injector - external
- Power Over Ethernet (PoE)
- PoE++ (IEEE 802.3bt)
- Colour
- Black
Power Device
- Power Output Connectors Details
- 1 x RJ-45
- Output Voltage
- 48 - 56 V
- Power Capacity
- 90 Watt
Expansion / Connectivity
- Interfaces
- 2 x Gigabit LAN - RJ-45
Miscellaneous
- Included Accessories
- Mounting kit, terminal block
- MTBF
- 540,891 hours
- Features
- Rugged, DIN rail mountable, auto MDIX support, LED indicators, over current protection, overload protection, 8 kV ESD protection (Air), 6 kV ESD protection (Contact)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, UL, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, UL 60950-1, EN 60950-1, WEEE, cULus, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- -40 °C
- Max Operating Temperature
- 75 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
Dimensions & Weight
- Width
- 3.2 cm
- Depth
- 8.2 cm
- Height
- 10.4 cm
- Weight
- 174 g
Dimensions & Weight (Shipping)
- Shipping Width
- 21.1 cm
- Shipping Depth
- 16.2 cm
- Shipping Height
- 6.4 cm
- Shipping Weight
- 400 g
