Description
Broadcast your HDMI signal to multiple locations throughout your site, using your existing network infrastructure. The HDMI over IP extender kit makes it easy for you to distribute HDMI to a remote display using your local area network. You can also use additional receivers (ST12MHDLNHR, sold separately) to distribute HDMI to multiple locations.
Unlike some video-over-IP solutions that consume your bandwidth, this HDMI over IP kit uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements. Extending your HDMI signal using video compression saves your network resources, avoiding the hassle of a separate video network.
The HDMI over IP kit can be scaled to meet your specific needs. In a point-to-multipoint setup, you can route your HDMI signal to as many displays as you need, using additional receivers. For additional scalability, you can combine up to 99 different kits to create a multipoint-to-multipoint setup, where you can route different HDMI source signals to different displays. Mounting hardware and IR extenders are included for each transmitter and receiver to ensure tidy, professional installation and hassle-free remote operation.
The HDMI over IP kit maintains your HD video quality, supporting resolutions up to 1080p and making it easy to distribute dynamic digital signage throughout your site to attract customers.

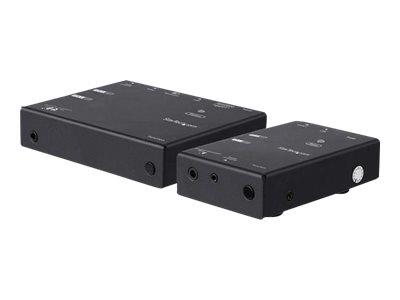

Highlights of the StarTech.com HDMI over IP Extender - 1080p
- Efficiently distribute video throughout your site using your local area network
- Easily create your ideal digital signage with a versatile and scalable video distribution system
- Deliver brilliant HD quality video with 1080p support
Specifications
Summary
- Product Description
- StarTech.com HDMI Over IP Extender Kit - Advanced Compression - Transmitter & Receiver (ST12MHDLNHK) - video/audio/infrared extender - HDMI - TAA Compliant
- Device Type
- Video/audio/infrared extender
- Form Factor
- External
- Localisation
- Australia, New Zealand, United Kingdom, Europe, North Asia
- Data Link Protocol
- HDMI
- Max Transfer Distance
- 15 m
- Power
- AC 120/230 V
- Dimensions (WxDxH)
- 9.7 cm x 13 cm x 2.8 cm
- Weight
- 448 g
- TAA Compliant
- Yes
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: ST12MHDLNHR
Detailed Specification
General
- Device Type
- Video/audio/infrared extender
- Form Factor
- External
- Colour
- Black
- Localisation
- Australia, New Zealand, United Kingdom, Europe, North Asia
Networking
- Connectivity Technology
- Wired
- Data Link Protocol
- HDMI
- Max Transfer Distance
- 15 m
- Status Indicators
- Status
- Features
- 1080p resolution support, daisy-chaining support, 2 channels
Expansion / Connectivity
- Interfaces
- 1 x HDMI (input) - 19 pin HDMI Type A female , 1 x HDMI (output) - 19 pin HDMI Type A female , 1 x IR (input) - mini jack female , 1 x IR (output) - mini jack female , 1 x audio (input) - mini jack , 1 x audio (output) - sub-mini jack
Miscellaneous
- Included Accessories
- Remote control, IR receiver, IR transmitter, 8 rubber feet, screwdriver
- Cables Included
- 2 x network cable , 1 x mini-USB type B to USB type A power cable , 2 x DB-9 to 2.5 mm serial adapter cable
- Rack Mounting Kit
- Included
- Compliant Standards
- FCC, RoHS
- TAA Compliant
- Yes
Power
- Power Device
- External power adapter
- Installed Qty
- 2
- Voltage Required
- AC 120/230 V
Dimensions & Weight
- Width
- 9.7 cm
- Depth
- 13 cm
- Height
- 2.8 cm
- Weight
- 448 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 80%
Compatibility Information
- Designed For
- P/N: ST12MHDLNHR
