Description

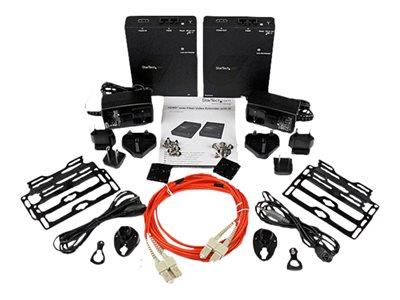

Extend HDMI video and audio over SC Multi Mode fiber, with Infrared control. The ST121HDFXA is a long-range HDMI video extender kit that uses SC fiber optic cable to extend video/audio from an HDMI-equipped device to a remote display up to 2600 feet (800 Meters) away. The extender supports full High-Definition video (1920x1200 / 1080p) and includes both the transmitter and receiver, for a complete ready-to-use digital signage solution.
Not only is this an incredibly long range solution that can extend an HDMI signal across or between buildings, but because fiber optics transmit data using light rather than copper, it will not cause or be effected by electromagnetic Interference (EMI).
For convenient, time-saving control of the media source, the HDMI extender also offers Infrared (IR) extension, which enables you to control the HDMI audio-video source from either end of the connection. The kit also includes optional mounting hardware for a clean and professional installation.
Highlights of the StarTech.com HDMI Over Fiber Extender with IR Control – SC Fiber - 2600ft (800m) - 1920x1200/1080p
- No interference from other signals, using fiber cabling
- Reach longer connection distances that wouldn't be possible using copper wiring, with HD content delivery at distances up to 2600ft (800m)
- Tidy, professional looking installations using the included mounting hardware
Specifications
Summary
- Product Description
- StarTech.com HDMI® Over Fiber Extender with IR Control - HDMI to SC Fiber Converter Extender up to 2600ft (800m) - 1920x1200 / 1080p (ST121HDFXA) - video/audio extender - Fibre Channel, HDMI
- Device Type
- Video/audio extender
- Form Factor
- External
- Data Transfer Rate
- 3.4 Gbps
- Data Link Protocol
- Fibre Channel, HDMI
- Transmission Medium
- Fiber optic
- Max Transfer Distance
- 800 m
- Power
- AC 120/230 V
- Dimensions (WxDxH)
- 9.7 cm x 12.9 cm x 2.6 cm
- Weight
- 445 g
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Video/audio extender
- Form Factor
- External
- Colour
- Black
Networking
- Connectivity Technology
- Wired
- Data Link Protocol
- Fibre Channel, HDMI
- Data Transfer Rate
- 3.4 Gbps
- Max Resolution
- 1080p @ 60 Hz
- Max Transfer Distance
- 800 m
Expansion / Connectivity
- Interfaces
- 1 x HDMI , 1 x - Fibre Channel - SC multi-mode female , 1 x IrDA
Miscellaneous
- Compliant Standards
- FCC, RoHS
Power
- Power Device
- External power adapter
- Installed Qty
- 2
- Voltage Required
- AC 120/230 V
Dimensions & Weight
- Width
- 9.7 cm
- Depth
- 12.9 cm
- Height
- 2.6 cm
- Weight
- 445 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 80%
