Description
Connect a DisplayPort 1.2-equipped computer to a VGA Monitor or Projector. The DP2VGA3 DisplayPort 1.2 to VGA adapter lets you connect your DisplayPort-equipped desktop or laptop computer to a VGA monitor or projector, eliminating the expense of upgrading to a DisplayPort 1.2-capable display.
The DP to VGA adapter is fully compliant with the DisplayPort 1.2 revision, ensuring compatibility with newer DisplayPort enabled computer systems. The DisplayPort 1.2 adapter is also backward compatible with older DisplayPort revisions, ensuring this adapter will work with your DisplayPort computer. Plus, with support for resolutions up to 1920x1200 / 1080p you can convert your DisplayPort video source to work with your VGA projector or display without sacrificing video quality.
For a hassle-free setup the DisplayPort adapter allows for plug and play installation with no software or drivers required.
Highlights of the StarTech.com DisplayPort 1.2 to VGA Adapter Converter – DP to VGA – 1920x1200
- DISPLAYPORT TO VGA ADAPTER: DisplayPort 1.2 (HBR2) adapter connects a VGA display or projector supporting 2048x1280, 1920x1200 & 1920x1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display | 3.9" (10cm) attached cable
- COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect a VGA monitor or projector, or add a second display to your workstation using this DP to VGA video adapter; Sleek and compact design makes it easy to travel to and from office or home
- SCREW LOCKING VGA: Non-latching DP connector is easy to disconnect from a hard to reach source | Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection | Tested with VGA cables up to 25 ft long
- EASY TO USE: With no software or drivers required, the DP to VGA adapter dongle works with any OS including Windows, Ubuntu and macOS; DisplayPort male to VGA female | Available in a 5-pack (DP2VGA3X5)
-
Crystal-Clear Picture Quality
With support for video resolutions up to 1920x1200 or 1080p, you'll be surprised at the picture quality the adapter provides, even when connected to an older VGA monitor, projector or television. The adapter harnesses the video capabilities built into your DisplayPort connection to deliver every detail in stunning high-definition. -
Works with Your Legacy VGA Displays & Projectors

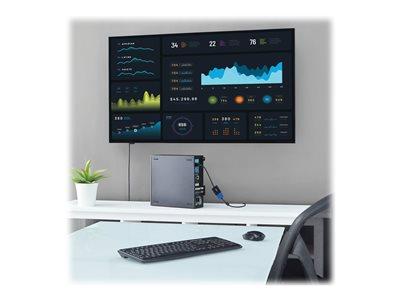

This DisplayPort video adapter makes your DP computer fully compatible with legacy VGA monitors or projectors in your home or around the office. You can use the converter to either connect to an existing VGA display or add a secondary monitor to your workstation, helping to boost your productivity. -
Designed for Maximum Portability
This DisplayPort to VGA dongle maximizes portability with a compact, lightweight design, making it the perfect travel accessory to carry with your DisplayPort devices. The ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office, delivering HD video presentations on-the-go or even staying connected at home. For added convenience, this DP to VGA converter supports plug-and-play connectivity and requires no additional software or drivers for a hassle-free setup. DP2VGA3 is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Specifications
Summary
- Product Description
- StarTech.com DisplayPort to VGA Display Adapter - 1080p 1920x1200 - Active DP to VGA (Male to Female) HD Video Converter for laptop/PC/Monitor (DP2VGA3) - display adapter - 10 cm
- Type
- Display adapter
- Features
- Active cable (signal regeneration)
- Length
- 10 cm
- Connector
- DisplayPort - male
- Connector (Second End)
- HD-15 (VGA) - female
- Compliant Standards
- FCC, RoHS
- Colour
- Black
- Manufacturer Warranty
- 3-year warranty
- Designed For
- P/N: DK30C2DPEP, DK30C2DPEPUE, DK30C2DPPD, DK30C2DPPDUE, DK31C3HDPD, DK31C3HDPDUE, DKM30CHDPD, DKWG30DPHPD, DKWG30DPHPDU, MST14DP123DP, MSTCDP122DP, MSTCDP123DP, MSTDP122DP, MSTDP123DP, MSTDP124DP, MSTMDP122DP, MSTMDP124DP, SV231QDPU34K, TB32DP14, TB32DP2T, TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU
Detailed Specification
General
- Type
- Display adapter
- Features
- Active cable (signal regeneration)
- Length
- 10 cm
- Colour
- Black
Connectivity
- Connector
- 20 pin DisplayPort - male
- Connector (Second End)
- 15 pin HD D-Sub (HD-15) - female
Miscellaneous
- Compliant Standards
- FCC, RoHS
Manufacturer Warranty
- Service & Support
- 3-year warranty
Compatibility Information
- Designed For
- P/N: DK30C2DPEP, DK30C2DPEPUE, DK30C2DPPD, DK30C2DPPDUE, DK31C3HDPD, DK31C3HDPDUE, DKM30CHDPD, DKWG30DPHPD, DKWG30DPHPDU, MST14DP123DP, MSTCDP122DP, MSTCDP123DP, MSTDP122DP, MSTDP123DP, MSTDP124DP, MSTMDP122DP, MSTMDP123DP, MSTMDP124DP, SV231QDPU34K, TB32DP14, TB32DP2T, TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU
