Description

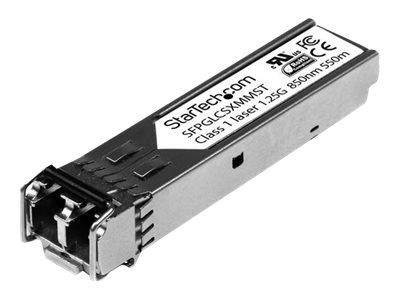

Add, replace or upgrade SFP modules on Gigabit fiber equipment. The SFPGLCSXMMST Cisco Compatible Gigabit Fiber SFP Transceiver Module MM LC - 550m (1804 ft) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Multimode LC port on your Gigabit fiber networking equipment or fiber media converter.
Supporting data rates up to 1.25 Gbps, this LC Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 850nm multi-mode SFP module is compatible with the Cisco GLC-SX-MM transceiver. Also a perfect accessory for the StarTech.com PCI Express Open SFP NIC (PEX1000SFP), or Gigabit POE Open SFP Media Converter (ET1110PSE) products.
Highlights of the StarTech.com Cisco Compatible Gigabit Fiber SFP Transceiver Module MM LC – 550m (Mini-GBIC)
- 100% compatibility with Cisco GLC-SX-MM guaranteed
- StarTech.com SFP modules are backed by a lifetime warranty
- Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards
Specifications
Summary
- Product Description
- StarTech.com Cisco GLC-SX-MM Compatible SFP Module, 1000BASE-SX, 1GbE Multimode Fiber MMF Optic Transceiver, Gigabit Ethernet SFP, LC Connector, 550m, 850nm, Cisco IE3400, IE3300, IE3200 - Lifetime Warranty (SFPGLCSXMMST) - SFP (mini-GBIC) transceiver module - GigE
- Device Type
- SFP (mini-GBIC) transceiver module - LC multi-mode
- Form Factor
- Plug-in module
- Cabling Type
- 1000Base-SX
- Data Transfer Rate
- 1.25 Gbps
- Optical Wave Length
- 850 nm
- Data Link Protocol
- GigE
- Max Transfer Distance
- 550 m
- Dimensions (WxDxH)
- 1.2 cm x 6 cm x 1 cm
- Weight
- 16 g
- Manufacturer Warranty
- Limited lifetime warranty
- Designed For
- P/N: ET91000SFP2, ET91000SFP2C, IES101002SFP, MCM1110SFP, PEX1000SFP2
Detailed Specification
General
- Device Type
- SFP (mini-GBIC) transceiver module
- Form Factor
- Plug-in module
Networking
- Connectivity Technology
- Wired
- Cabling Type
- 1000Base-SX
- Data Link Protocol
- GigE
- Data Transfer Rate
- 1.25 Gbps
- Optical Wave Length
- 850 nm
- Max Transfer Distance
- 550 m
- Features
- Full duplex capability, half duplex mode
- Compliant Standards
- IEEE 802.3z
Expansion / Connectivity
- Interfaces
- 1 x Ethernet 1000Base-SX - LC multi-mode x 2
- Compatible Slots
- 1 x SFP (mini-GBIC)
Miscellaneous
- Compliant Standards
- UL, FCC, RoHS, MSA
Dimensions & Weight
- Width
- 1.2 cm
- Depth
- 6 cm
- Height
- 1 cm
- Weight
- 16 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
- Humidity Range Operating
- 30 - 70%
Compatibility Information
- Designed For
- P/N: ET91000SFP2, ET91000SFP2C, IES101002SFP, MCM1110SFP, PEX1000SFP2
