Description

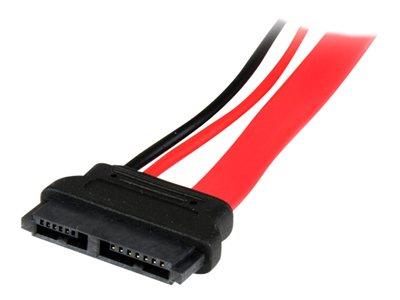

Connect a Slimline SATA optical drive up to 6in away from a standard SATA motherboard connection. The SLSATAADAP6 Slimline SATA to SATA adapter features a Slimline Serial ATA connector on one end and a standard SATA data connector (with SATA power connector) on the other, enabling you to connect a Slimline SATA optical drive to standard motherboard and power supply connections.
The slim SATA adapter offers 6-inches in cable length, which compared to standard (non-cable) SATA/Slimline SATA adapter reduces strain off the drive connector and allows for flexible cable routing when positioning the Slimline SATA drive within the system case.
Highlights of the StarTech.com 6in Slimline SATA to SATA Adapter with Power - F/M
- Backed by StarTech.com lifetime warranty
- Cost-effective way to connect a Slimline SATA optical drive to a standard SATA motherboard, using standard SATA cables
- The 6-inch cable format reduces strain on, and prevents damage to the Slimline SATA drive connector and provides flexibility to position your Slim SATA drive as needed within your system case
Specifications
Summary
- Product Description
- StarTech.com 6in Slimline SATA to SATA Adapter with Power - Slim SATA (F) to SATA (M) - Slimline Serial ATA to SATA (SLSATAADAP6) - SATA adapter
- Type
- SATA adapter
- Interface Speed
- Serial ATA 150/300/600
- Connector
- 13 pin Slimline Serial ATA - female
- Connector (Second End)
- 22 pin Serial ATA - male
- Colour
- Red
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Storage Cable Type
- SATA adapter
- Interface Speed
- Serial ATA 150/300/600
- American Wire Gauge (AWG)
- 18
- Colour
- Red
Connectivity
- Connector
- 13 pin Slimline Serial ATA - female
- Connector (Second End)
- 22 pin Serial ATA - male
Miscellaneous
- Compliant Standards
- RoHS
Manufacturer Warranty
- Service & Support
- Limited lifetime warranty
