Description
HDMI KVM Extender Kit - 4K 60Hz - 4:4:4 Chroma Sampling - 2x LC SFP+ (MM) Included.
Highlights of the StarTech.com 4K HDMI KVM Extender
- REMOTE ACCESS: USB & 4K HDMI KVM extender over fiber controls a KVM switch/console or PC using a fiber optic cable at distances up to 984'/300m (multimode cable) or 1,640'/500m (single mode cable); open SFP+ slots for use w/ MSA compliant 10G SFP+ modules
- 4K 60Hz VIDEO: HDMI transmitter and receiver extender kit achieves UHD resolutions up to 3840 x 2160 @ 60Hz, supporting 4:4:4 image sampling for accurate color & image for applications requiring high resolution video like digital signage & security
- DIGITAL AUDIO & HDMI 2.0 VIDEO: Keyboard Video Mouse Extender with EDID passthrough transfers display capabilities to the video source, maximizing compatibility between devices; Digital 7.1 surround audio over HDMI for high quality sound; HDCP 2.2 support
- SPECS: HDMI 2.0 Fiber Optic KVM Extender | 3x USB 2.0 HID | OS Independent | EDID Passthrough | Supports MM or SM SFP+ | 2x 10G Multimode SFP+ modules inc. | LC Connectors | 300m/984 ft (MM) or 500m/1,640 ft (SM) max extension range | 2 year Warranty
- EASY TO DEPLOY: Straightforward point-to-point setup using standard fiber optic cable makes configuration easy using the incl. SFP+ modules; there's no proprietary software and network settings to configure; StarTech.com's tech advisors are available 24/5
-
Supports UHD 4K 60Hz
The HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling. -
Hassle-Free Installation
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display using 10G LC multi mode fiber cabling SV565FXHD4KU is backed by a 2-year warranty and free lifetime technical support.
Specifications
Summary
- Product Description
- StarTech.com 4K HDMI KVM Extender over Fiber, HDMI Video & USB over Fiber, up to 984ft/300m (MultiMode), 10G MMF SFP+ modules, Remote KVM Switch/Console Extender, KVM Extension Kit (TX/RX) - Transmitter & Receiver - KVM / audio extender - 10 GigE
- Device Type
- KVM / audio extender - USB
- Form Factor
- External
- Cabling Type
- 10GBase-SR
- Optical Wave Length
- 850 nm
- Data Link Protocol
- 10 GigE
- Transmission Medium
- Fibre optic
- Max Transfer Distance
- 300 m
- Power
- AC 100-240 V
- Dimensions (WxDxH)
- 7.5 cm x 10 cm x 2.8 cm
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- KVM / audio extender
- Form Factor
- External
- Colour
- Black
Networking
- Connectivity Technology
- Wired
- Cabling Type
- 10GBase-SR
- Data Link Protocol
- 10 GigE
- Optical Wave Length
- 850 nm
- Keyboard / Mouse Interface
- USB
- Max Resolution
- 3840 x 2160 @ 60 Hz
- Max Transfer Distance
- 300 m
- Status Indicators
- Status
- Features
- Full duplex mode, 7.1 channel audio support, EDID Pass-Through, Digital Diagnostics Monitoring (DDM), 4:4:4 chroma subsampling support, USB HID Transport
- Compliant Standards
- IEEE 802.3ae, USB 1.1, USB 2.0
Expansion / Connectivity
- Interfaces
- 1 x HDMI (input) - 19 pin HDMI Type A female , 1 x HDMI (output) - 19 pin HDMI Type A female , 3 x USB 2.0 (input) - Type A
Miscellaneous

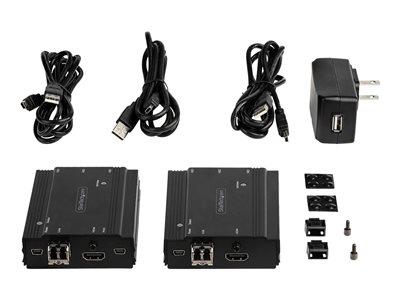

- Included Accessories
- 2 x SFP+ transceivers (LC multi-mode)
- Cables Included
- 3 x USB type A to mini-USB type B cable
- MTBF
- 1,000,000 hours
- Compliant Standards
- FCC, RoHS, MSA, EDID compatible, OM3, HDCP 2.2
Power
- Power Device
- External power adapter
- Installed Qty
- 2
- Voltage Required
- AC 100-240 V
- Power Consumption Operational
- 10 Watt
Dimensions & Weight
- Width
- 7.5 cm
- Depth
- 10 cm
- Height
- 2.8 cm
Dimensions & Weight (Shipping)
- Shipping Width
- 30.6 cm
- Shipping Depth
- 17.5 cm
- Shipping Height
- 7.4 cm
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 0 - 80% (non-condensing)
