Description
USB Extender Over CAT5e/CAT6/CAT7 - Rugged Enclosure - 2-Year Warranty.
Highlights of the StarTech.com 4-Port USB 2.0 Extender Hub
- RELIABLE LONG-RANGE PERFORMANCE: Offers extension of 4x USB 2.0 devices up to 330ft (100 meters) over CAT5e/CAT6 RJ45 ethernet network cable with speeds up to 480Mbps; LEDs monitor Power & Link Status
- ROBUST CONSTRUCTION: Featuring an extruded aluminum & metal housing this USB 2.0 extender is ideal for high wear-and-tear, commercial settings; Remotely access USB printers, cameras, plotters, keyboard/mouse, displays & CCTV systems
- ACTIVE USB EXTENDER KIT: With the included power adapter, the receiver hub at remote end shares 10W of total power providing up to 5V, 500mA/2.5W of power per port, while the local transmitter is powered by the PC USB port
- PLUG-AND-PLAY: The extender features driverless installation and is compatible with all major operating systems including Windows, macOS, Linux; Backwards Compatible with USB 1.1 and USB 1.0 devices
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 4 Port USB extender hub is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
-
Hi-Speed USB Performance
With data bandwidth of up to 480Mbps and no software installation required, the USB extender over Cat5e, Cat6, or Cat7 network cabling offers a fast, easy, and versatile solution for business or commercial applications with durable metal housing, an included surface-mounting bracket kit and simple plug-and-play installation. Plus, the 330 ft. (100 m) USB extender provides up to the full 500 mA of power (with the use of an external power adapter at the remote end) allowing for greater compatibility with bus-powered USB devices. -
Compatible with USB 2.0/1.1/1.0 Devices
Connecting low-speed peripherals or HID devices isn't a problem. This versatile USB over network extender is backward compatible with legacy USB 1.0/1.1 devices, so you can access up to four different types of USB devices from your remote location, far away from the host computer. -
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales USB2004EXT100 is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.
Specifications
Summary
- Product Description
- StarTech.com 4-Port USB 2.0 Extender Hub over Single CAT5e/CAT6 Ethernet Cable (RJ45) - 330ft (100m) - USB Extender Hub Adapter Kit - Metal Housing - Externally Powered - 480 Mbps - USB extender - USB 2.0
- Device Type
- USB extender
- Form Factor
- External
- Localisation
- Australia, Japan, New Zealand, North America, United Kingdom, Europe
- Data Transfer Rate
- 480 Mbps
- Data Link Protocol
- USB 2.0
- Transmission Medium
- CAT 5e/6
- Max Transfer Distance
- 100 m
- Power
- AC 100-240 V
- Dimensions (WxDxH)
- 6 cm x 10 cm x 2.2 cm
- Weight
- 143 g
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- USB extender
- Form Factor
- External
- Colour
- Black
- Localisation
- Australia, Japan, New Zealand, North America, United Kingdom, Europe
Networking
- Connectivity Technology
- Wired
- Data Link Protocol
- USB 2.0
- Data Transfer Rate
- 480 Mbps
- Max Transfer Distance
- 100 m
- Status Indicators
- Status
- Features
- Rugged
- Compliant Standards
- USB 2.0
Expansion / Connectivity
- Interfaces
- 4 x USB 2.0 - Type A , 1 x USB 2.0 - Type B
Miscellaneous

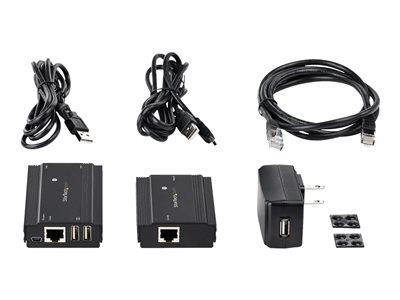

- Included Accessories
- 4 rubber feet
- Cables Included
- 2 x mini-USB to USB cable - 1.5 m , 1 x network cable - 1.5 m
- Compliant Standards
- Plug and Play, FCC, RoHS, WEEE
Power
- Power Device
- External power adapter
- Installed Qty
- 1
- Voltage Required
- AC 100-240 V
- Power Consumption Operational
- 10 Watt
Dimensions & Weight
- Width
- 6 cm
- Depth
- 10 cm
- Height
- 2.2 cm
- Weight
- 143 g
Dimensions & Weight (Shipping)
- Shipping Width
- 23.5 cm
- Shipping Depth
- 15.3 cm
- Shipping Height
- 6.5 cm
- Shipping Weight
- 716 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 80% RH
