Description

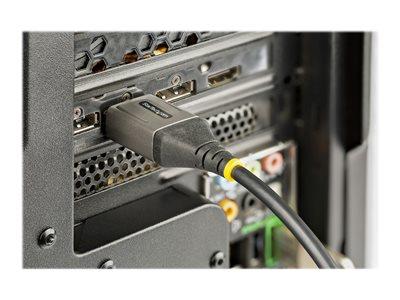

VESA Certified DisplayPort 1.4 Cable - 8K 60Hz HDR10 - 3.3 ft. (1 m).
Highlights of the StarTech.com 3ft DisplayPort 1.4 8K 60Hz
- HIGH PERFORMANCE: 3.3ft (1m) VESA Certified DisplayPort 1.4 cable; 8K 60Hz (7680x4320p), 4K 120Hz (3840x2160p), 32.4Gbps bandwidth, HDR10, 32Ch Audio, MST, GTC for precise audio channel timing; future-proof your equipment by making it 8K ready
- RELIABLE: 34 AWG video cable built with internal wire manager to ensure signal integrity; Metal connector sub-structure & Al-Mylar Foil w/Braid (85% coverage) for superior EMI shielding; Gold-plated latching DP connectors prevent accidental disconnection
- DURABLE: Tested to withstand 5000+ insertions & 300+ bend cycles at 120° angle; Long lasting TPE jacket w/ molded Soft TPE strain relief absorbs stress of frequent bends; TPE is non-toxic, halogen free & RoHS certified for environmental sustainability
- APPLICATIONS: 8K DisplayPort cable for home or professional workstations w/ Radeon Vega Frontier/Pro WX Series 2100/3100/5100/7100/W5500, Pro Duo 2000 & Nvidia Quadrop GP100, GV100/RTX 4000; Dell XPS 11th Gen, HP Z2 G8; Connect to DP monitor/display/TV
- SPECS: 3.3 feet (1 meter) | Black | DP 1.4 cable | Male to Male Cord | Gold-plated connectors | EMI Shield: Al-Mylar Foil w/85% Braid | Supports: HBR3, 4:4:4 Chroma Subsampling, DSC 1.2, HDCP 2.2 | Works w/DP 1.4 & previous versions | Lifetime Warranty
-
8K: enabling business continuity
8K has a resolution of 7680 x 4320 and is also known as 4320p and Ultra High Definition (UHD). Suitable for digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start future proofing your cabling infrastructure. -
Comprehensive?product testing?and?expert?technical support
StarTech.com?conducts thorough?compatibility and performance?testing?on?all?the products?to?ensure they are meeting or?exceeding industry standards?and providing?high-quality products to the customers. Their?local?StarTech.com?Technical?Advisors?have a broad product expertise?and?work directly with StarTech.com?Engineers to?provide support for the customers?both pre- and post-sales.
Specifications
Summary
- Product Description
- StarTech.com 3ft (1m) VESA Certified DisplayPort 1.4 Cable, 8K 60Hz HDR10, Ultra HD 4K 120Hz DP Video Cable, DisplayPort to DisplayPort Cable, DP Cord for Monitors/Displays, M/M - DP 1.4 Cable with Latches (DP14VMM1M) - DisplayPort cable - DisplayPort to DisplayPort - 1 m
- Type
- DisplayPort cable
- Technology
- Shielded
- Features
- Molded, passive cable, 8K60Hz (7680 x 4320) support, 4K120Hz (3840 x 2160) support, strain relief, HBR3 support, Display Stream Compression 1.2 (DSC), DisplayPort Multi-Stream Transport (MST), 32 audio channels, HDR10 support, 7.1 audio channel support, Chroma subsampling (4:4:4), 32.4 Gbps data rate, Forward Error Correction, 5.1 audio channel support
- Length
- 1 m
- Connector
- 20 pin DisplayPort - male
- Connector (Second End)
- 20 pin DisplayPort - male
- Compliant Standards
- DisplayPort 1.4
- Colour
- Grey, black
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Type
- DisplayPort cable
- Technology
- Shielded
- Shielding Material
- Aluminum mylar foil with braid
- Jacket Material
- Thermoplastic elastomer (TPE)
- American Wire Gauge (AWG)
- 34
- Plated Connector
- Gold
- Features
- Molded, passive cable, 8K60Hz (7680 x 4320) support, 4K120Hz (3840 x 2160) support, strain relief, HBR3 support, Display Stream Compression 1.2 (DSC), DisplayPort Multi-Stream Transport (MST), 32 audio channels, HDR10 support, 7.1 audio channel support, Chroma subsampling (4:4:4), 32.4 Gbps data rate, Forward Error Correction, 5.1 audio channel support
- Length
- 1 m
- Outside Diameter
- 4.5 mm
- Colour
- Grey, black
Connectivity
- Connector
- 20 pin DisplayPort - male
- Connector (Second End)
- 20 pin DisplayPort - male
Miscellaneous
- Compliant Standards
- DisplayPort 1.4, RoHS, HDCP 2.2, 8K VESA certified
Dimensions & Weight (Shipping)
- Shipping Width
- 22 cm
- Shipping Depth
- 20 cm
- Shipping Height
- 2 cm
- Shipping Weight
- 59 g
- Service & Support
- Limited lifetime warranty
