Description

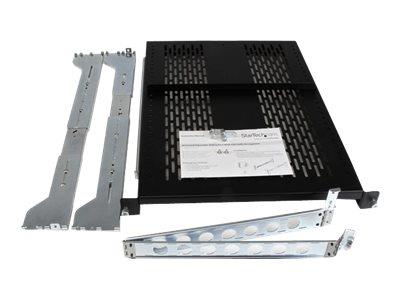

Add a vented, sliding shelf with integrated cable management into virtually any server rack or cabinet. The UNISLDSHF19M Adjustable Sliding Rack Shelf lets you add a vented, sliding shelf with cable management into virtually any 4-post server rack or cabinet.
The adjustable mounting depth design allows the shelf to be installed easily into server cabinets with mounting depths from 27.7in (702.2mm) to 31.6in (802.2mm). The sliding rails also offer a locking mechanism to stop the shelf from sliding out too far, or sliding back into the rack before maintenance is complete.
Offering a weight capacity of up to 125 lbs (56.7 kg), this sliding rack shelf features a ventilated, cold-rolled steel construction for increased airflow and durability in your server room or wiring closet installations.
For ease in routing cables neatly through your rack, we've included a reversible cable management arm that can be attached to the back of the shelf, plus an adjustable bezel to keep your equipment where you want it on the shelf.
Highlights of the StarTech.com 2U Vented Sliding Rack Shelf w/ Cable Management Arm & Adjustable Depth 125lbs / 56.7kg
- Supports up to 125lbs (56.7kg)
- Adjustable mounting depth from 27.7in (702.2mm) to 31.6in (802.2mm)
- TAA compliant for GSA Schedule purchases
- Includes a reversible cable management arm
- Vented shelf for increased airflow
- Sliding rails with locks to prevent the shelf from sliding out too far
- Sturdy, 2mm cold-rolled steel construction
Specifications
Summary
- Product Description
- StarTech.com 2U Vented Sliding Server Rack Shelf w/ Cable Management Arm - Adjustable Depth - 125lb - 19" Server Tray Shelf for Equipment Rack (UNISLDSHF19M) rack shelf - 2U
- Product Type
- Rack shelf
- Colour
- Black
- Height (Rack Units)
- 2U
- Product Material
- Steel
- Dimensions (WxDxH)
- 48.3 cm x 60.96 cm x 8.52 cm
- Features
- Sliding, integrated cable management, vented
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: 2636CABINET, 4POSTRACK12, 4POSTRACK12A, 4POSTRACK12U, 4POSTRACK25, 4POSTRACK25U, 4POSTRACK36, 4POSTRACK42, 4POSTRACKBK, 4POSTRACKHD, 7236CABINET, RK1233BKM, RK1236BKF, RK1833BKM, RK2236BKF, RK2433BKM, RK2536BKF, RK2537BKM, RK3236BKF, RK4236BK, RK4236BKB, RK4242BK, RK4242BK24, RK4242BK30
Detailed Specification
General
- Product Type
- Rack shelf
- Product Material
- Steel
- Height (Rack Units)
- 2U
- Width
- 48.3 cm
- Depth
- 60.96 cm
- Height
- 8.52 cm
- Colour
- Black
Miscellaneous
- Weight Limit
- 56.7 kg
- Features
- Sliding, integrated cable management, vented
- Compliant Standards
- RoHS
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Compatibility Information
- Designed For
- P/N: 2636CABINET, 4POSTRACK12, 4POSTRACK12A, 4POSTRACK12U, 4POSTRACK25, 4POSTRACK25U, 4POSTRACK36, 4POSTRACK42, 4POSTRACKBK, 4POSTRACKHD, 7236CABINET, RK1233BKM, RK1236BKF, RK1833BKM, RK2236BKF, RK2433BKM, RK2536BKF, RK2537BKM, RK3236BKF, RK4236BK, RK4236BKB, RK4242BK, RK4242BK24, RK4242BK30
