Description

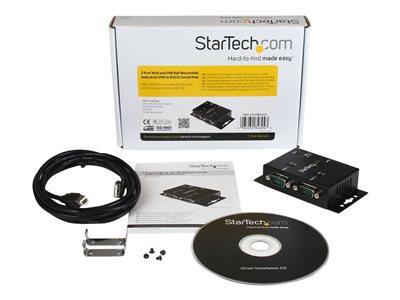

The ICUSB2322I 2-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into two RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Highlights of the StarTech.com 2 Port Industrial Wall Mountable USB to Serial Adapter Hub with DIN Rail Clips
- Easy plug and play installation, with our USB Powered adapter - no power outlet required
- Integrated wallmount brackets and included DIN Rail clips for versatile mounting options
- Rugged all-metal enclosure for added durability in harsh environments
Specifications
Summary
- Product Description
- StarTech.com USB to Serial Adapter - 2 Port - Wall Mount - Din Rail Clips - Industrial - COM Port Retention - FTDI - DB9 (ICUSB2322I) - serial adapter - USB 2.0 - RS-232 x 2
- Device Type
- Serial adapter
- Form Factor
- External
- Interface (Bus) Type
- USB 2.0
- Ports
- RS-232 x 2
- Dimensions (WxDxH)
- 5.6 cm x 10.4 cm x 2.5 cm
- Weight
- 400 g
- Data Link Protocol
- RS-232
- Data Transfer Rate
- 921.6 Kbps
- Processor
- FTDI
- Colour
- Black
- System Requirements
- Microsoft Windows CE, Microsoft Windows 2000 Server, Apple MacOS X 10.x, Microsoft Windows Server 2003, Linux 2.4.x, Linux 2.6.x, Microsoft Windows Server 2008 R2, Microsoft Windows 2000/XP/Vista/7
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Serial adapter
- Form Factor
- External
- Interface (Bus) Type
- USB 2.0
Networking
- Ports
- RS-232 x 2
- Connectivity Technology
- Wired
- Data Link Protocol
- RS-232
- Data Transfer Rate
- 921.6 Kbps
- Status Indicators
- Link/activity
- Features
- USB powered, wall mountable, rugged, DIN rail mountable
Processor / Memory
- Processor
- FTDI
Expansion / Connectivity
- Interfaces
- 2 x RS-232 - 9 pin D-Sub (DB-9)
- Connections
- 1 x USB 2.0 - 4 pin USB Type B
Miscellaneous
- Compliant Standards
- Plug and Play, RoHS
- Colour
- Black
Software / System Requirements
- OS Required
- Microsoft Windows CE, Microsoft Windows 2000 Server, Apple MacOS X 10.x, Microsoft Windows Server 2003, Linux 2.4.x, Linux 2.6.x, Microsoft Windows Server 2008 R2, Microsoft Windows 2000/XP/Vista/7
Dimensions & Weight
- Width
- 5.6 cm
- Depth
- 10.4 cm
- Height
- 2.5 cm
- Weight
- 400 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 5 - 95%
