Description

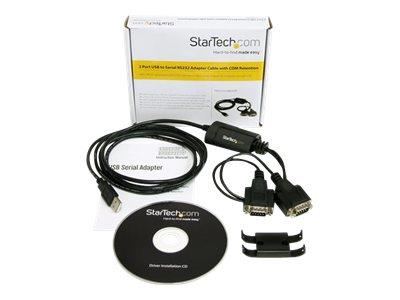

The ICUSB2322F 2-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into 2 RS232 serial DB9 ports to connect, monitor and control your serial devices.
This compact adapter features COM retention, allowing the same COM port values to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. Unlike most USB-serial adapters, this one uses the FTDI chipset, which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
This USB-serial adapter is compatible with a broad list of Operating Systems, including Windows, Windows CE, Mac OS and Linux, making this product the perfect solution for integrating into mixed environments.
Specifications
Summary
- Product Description
- StarTech.com USB to Serial Adapter - 2 Port - COM Port Retention - FTDI - USB to RS232 Adapter Cable - USB to Serial Converter (ICUSB2322F) - serial adapter - USB - RS-232 x 2
- Device Type
- Serial adapter
- Form Factor
- External
- Interface (Bus) Type
- USB
- Ports
- RS-232 x 2
- Weight
- 300 g
- Data Link Protocol
- RS-232
- Colour
- Black
- System Requirements
- Linux, Apple MacOS 9.x, Apple MacOS X 10.x, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows 2000/XP/Vista/7, Windows 10 (32/64 bits)
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Serial adapter
- Form Factor
- External
- Interface (Bus) Type
- USB
Networking
- Ports
- RS-232 x 2
- Connectivity Technology
- Wired
- Data Link Protocol
- RS-232
- Status Indicators
- Power
- Features
- USB powered
Expansion / Connectivity
- Interfaces
- 2 x RS-232 - 9 pin D-Sub (DB-9)
- Connections
- 1 x USB - 4 pin USB Type A
Miscellaneous
- Cables Included
- 1 x USB cable (integrated) - 1.8 cm
- Mounting Kit
- Included
- Compliant Standards
- FCC, RoHS
- Colour
- Black
Software / System Requirements
- OS Required
- Linux, Apple MacOS 9.x, Apple MacOS X 10.x, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows 2000/XP/Vista/7, Windows 10 (32/64 bits)
Dimensions & Weight
- Weight
- 300 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 5 - 95%
