Description

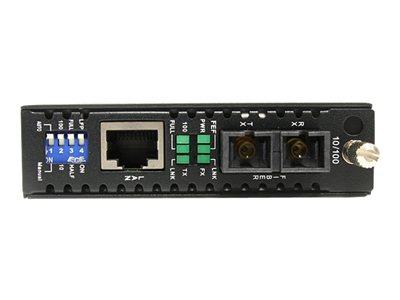

Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber. The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Highlights of the StarTech.com 10/100 Mbps Single Mode Fiber Media Converter SC 30 km
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
Specifications
Summary
- Product Description
- StarTech.com 10/100 Mbps Single Mode Fiber Media Converter SC - 18.6 miles/30km over Single Mode SC Fiber (ET90110SM302) - fibre media converter - 10Mb LAN, 100Mb LAN
- Device Type
- Fibre media converter - RJ-45 / SC single-mode
- Form Factor
- External
- Localisation
- North America, United Kingdom, Europe
- Cabling Type
- 100Base-FX
- Data Transfer Rate
- 100 Mbps
- Optical Wave Length
- 1310 nm
- Data Link Protocol
- 10Mb LAN, 100Mb LAN
- Max Transfer Distance
- 30 km
- Power
- AC 120/230 V
- Dimensions (WxDxH)
- 9.5 cm x 16 cm x 2 cm
- Weight
- 0.6 kg
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: ETCHS2U, SVA12M2NEUA, SVA12M5NA
Detailed Specification
General
- Device Type
- Fibre media converter
- Form Factor
- External
- Colour
- Black
- Localisation
- North America, United Kingdom, Europe
Networking
- Connectivity Technology
- Wired
- Cabling Type
- 100Base-FX
- Data Link Protocol
- 10Mb LAN, 100Mb LAN
- Data Transfer Rate
- 100 Mbps
- Optical Wave Length
- 1310 nm
- Max Transfer Distance
- 30 km
- Features
- Auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, rugged
Expansion / Connectivity
- Interfaces
- 1 x network - RJ-45 female , 1 x Ethernet 100Base-FX - SC single-mode female x 2
Miscellaneous
- Compliant Standards
- FCC, RoHS
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V
Dimensions & Weight
- Width
- 9.5 cm
- Depth
- 16 cm
- Height
- 2 cm
- Weight
- 0.6 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 60 °C
- Humidity Range Operating
- 10 - 90%
Compatibility Information
- Designed For
- P/N: ETCHS2U, SVA12M2NEUA, SVA12M5NA
