Description

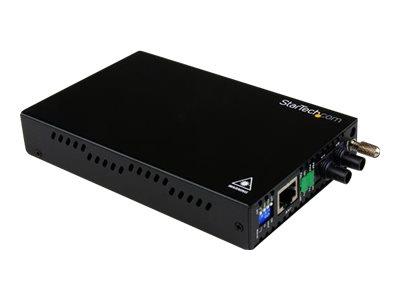

Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode ST fiber. The ET90110ST2 10/100 Mbps Multimode Fiber Media Converter (ST, 2 km) lets you extend a Fast Ethernet network (10/100 Mbps) over multimode fiber, at distances of up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to ST Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Highlights of the StarTech.com 10/100 Mbps Multi Mode Fiber Media Converter ST 2 km
- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
Specifications
Summary
- Product Description
- StarTech.com 10/100 Mbps Ethernet to Fiber Optic Media Converter - Steel - Chassis Mount - ST Multimode - 1310nm - 2km (ET90110ST2) - fibre media converter - 10Mb LAN, 100Mb LAN
- Device Type
- Fibre media converter - RJ-45 / ST multi-mode
- Form Factor
- External
- Cabling Type
- 10Base-T, 100Base-FX, 100Base-TX
- Data Transfer Rate
- 100 Mbps
- Optical Wave Length
- 1310 nm
- Data Link Protocol
- 10Mb LAN, 100Mb LAN
- Max Transfer Distance
- 2 km
- Power
- AC 120/230 V
- Dimensions (WxDxH)
- 9.5 cm x 16 cm x 2 cm
- Weight
- 0.6 kg
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: ETCHS2U, SVA12M2NEUA, SVA12M5NA
Detailed Specification
General
- Device Type
- Fibre media converter
- Form Factor
- External
Networking
- Connectivity Technology
- Wired
- Cabling Type
- 10Base-T, 100Base-FX, 100Base-TX
- Data Link Protocol
- 10Mb LAN, 100Mb LAN
- Data Transfer Rate
- 100 Mbps
- Optical Wave Length
- 1310 nm
- Max Transfer Distance
- 2 km
- Features
- Auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode
Expansion / Connectivity
- Interfaces
- 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female , 1 x Ethernet 100Base-FX - ST multi-mode female x 2
Miscellaneous
- Compliant Standards
- FCC, RoHS
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V
Dimensions & Weight
- Width
- 9.5 cm
- Depth
- 16 cm
- Height
- 2 cm
- Weight
- 0.6 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 60 °C
- Humidity Range Operating
- 10 - 90%
Compatibility Information
- Designed For
- P/N: ETCHS2U, SVA12M2NEUA, SVA12M5NA
