Description

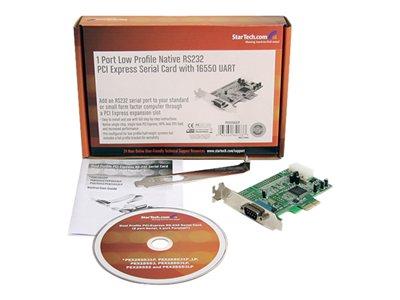

The PEX1S553LP PCI Express serial card turns a PCI Express slot into an RS232 (DB9) serial connection. The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 serial adapter card is compatible with a broad range of operating systems, including Windows 2000/XP/2003/Vista /Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 and up, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor). This product is a replacement for the PEX1S552LP card.
Highlights of the StarTech.com 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
- One high speed RS232 serial port with data transfer rate up to 460.8 Kbps
- Ships with half-height/low profile mounting bracket, includes standard bracket
- Selectable power output on pin 9 for the serial port
- Native single-chip, single lane PCI Express
- Single chip design optimizes speed and reliability
- Compliant with PCI Express base specifications revision 1.1a
- Automated out-of-band flow control using CTS/RTS and DSR/DTR
- Automated in-band software flow control using programmable Xon/Xoff in both directions
- 256 Byte FIFO
Specifications
Summary
- Product Description
- StarTech.com 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART (PEX1S553LP) - serial adapter - PCIe - RS-232
- Device Type
- Serial adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express
- Ports
- RS-232
- Data Link Protocol
- RS-232
- System Requirements
- Microsoft DOS, Linux, Microsoft Windows 2000, Microsoft Windows 95/98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows CE 5.0, Microsoft Windows Embedded POSReady 2009, Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows CE 6.0, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Apple MacOS X 10.4 - 10.7, Windows 8 (32/64 bits), Windows 10 (32/64 bits)
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Serial adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express
Networking
- Ports
- RS-232
- Connectivity Technology
- Wired
- Data Link Protocol
- RS-232
Expansion / Connectivity
- Interfaces
- 1 x RS-232 - 9 pin D-Sub (DB-9)
- Compatible Slots
- 1 x PCI Express
Miscellaneous
- Compliant Standards
- WHQL, FCC
Software / System Requirements
- OS Required
- Microsoft DOS, Linux, Microsoft Windows 2000, Microsoft Windows 95/98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows CE 5.0, Microsoft Windows Embedded POSReady 2009, Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows CE 6.0, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Apple MacOS X 10.4 - 10.7, Windows 8 (32/64 bits), Windows 10 (32/64 bits)
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- -20 °C
- Max Operating Temperature
- 85 °C
- Humidity Range Operating
- 5 - 85%
