Description
The Power of Agility for home, SOHO and SMB NAS enclosures. IronWolf is designed for everything NAS. Get used to tough, ready and scalable 24/7 performance that can handle multi-drive environments with a wide range of capacities.

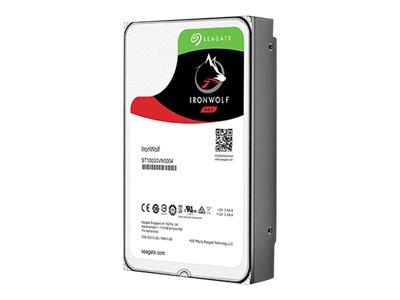

Highlights of the Seagate IronWolf 14TB 7200RPM SATA 6Gb/s 3.5" Hard Drive
- Optimized for NAS with AgileArray which is built for dual-plane balancing and RAID optimization in multi-bay environments with the most advanced power management possible
- High performance means no lag times or downtime for users during high traffic time for the NAS
- Scalable solution for any NAS use-case scenario
- Get ahead with more cache. IronWolf provides high-cache options allowing your NAS to serve data faster
- Do more with multi-user technology
- Multiple users can confidently upload and download data to the NAS server, knowing it can handle the workload, whether you're a creative professional or small business
- Designed for always on, always accessible 24/7 performance
- Access your data on your NAS any time, remotely or on site
Specifications
Summary
- Product Description
- Seagate IronWolf ST14000VN0008 - hard drive - 14 TB - SATA 6Gb/s
- Type
- Hard drive - internal
- Capacity
- 14 TB
- Form Factor
- 3.5"
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 600 MBps
- Buffer Size
- 256 MB
- Spindle Speed
- 7200 rpm
- Features
- 24x7 continuous operation, rotation vibration sensor, Dual-Plane Balance, Error Recovery Control, AgileArray
- Dimensions (WxDxH)
- 101.85 mm x 146.99 mm x 26.11 mm
- Weight
- 690 g
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Hard drive - internal
- Capacity
- 14 TB
- Form Factor
- 3.5"
- Interface
- SATA 6Gb/s
- Buffer Size
- 256 MB
- Features
- 24x7 continuous operation, rotation vibration sensor, Dual-Plane Balance, Error Recovery Control, AgileArray
- Width
- 101.85 mm
- Depth
- 146.99 mm
- Height
- 26.11 mm
- Weight
- 690 g
Performance
- Drive Transfer Rate
- 600 MBps (external)
- Internal Data Rate
- 210 MBps
- Spindle Speed
- 7200 rpm
Reliability
- MTBF
- 1,000,000 hours
- 24x7 Operation
- Yes
- Non-Recoverable Errors
- 1 per 10^15
- Load / Unload Cycles
- 600,000
Expansion & Connectivity
- Interfaces
- 1 x SATA 6 Gb/s
- Compatible Bay
- 3.5"
Power
- Power Consumption
- 7.9 Watt (active) , 5.3 Watt (idle) , 0.8 Watt (standby) , 0.8 Watt (sleep)
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 70 °C
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Shock Tolerance (operating)
- 70 g @ 2 ms
- Shock Tolerance (non-operating)
- 250 g @ 2 ms
