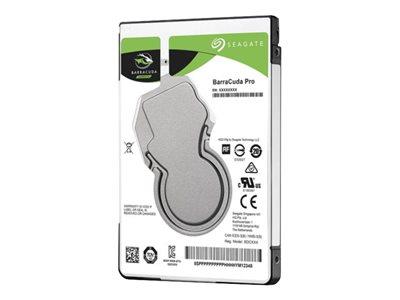

Seagate Barracuda Pro 7200 RPM SATA 2.5" 1TB Hard Drive
Description
Seagate Barracuda Pro ST1000LM049 Hard drive 1 TB, SATA 6Gb/s, 7200 rpm, buffer: 128 MB
Highlights of the Seagate Barracuda Pro 7200 RPM SATA 2.5" 1TB Hard Drive
- Full-track multiple-sector transfer capability without local processor intervention
- High instantaneous data-transfer rates
- NCQ with command ordering
- Quiet operation
- Advanced cache and on-the-fly error-correction algorithms
Specifications
Summary
- Product Description
- Seagate Barracuda Pro ST1000LM049 - hard drive - 1 TB - SATA 6Gb/s
- Type
- Hard drive - internal
- Capacity
- 1 TB
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 600 MBps
- Buffer Size
- 128 MB
- Spindle Speed
- 7200 rpm
- Features
- S.M.A.R.T.
- Dimensions (WxDxH)
- 100.35 mm x 69.85 mm x 7 mm
- Weight
- 90 g
Detailed Specification
General
- Device Type
- Hard drive - internal
- Capacity
- 1 TB
- Interface
- SATA 6Gb/s
- Buffer Size
- 128 MB
- Features
- S.M.A.R.T.
- Width
- 100.35 mm
- Depth
- 69.85 mm
- Height
- 7 mm
- Weight
- 90 g
Performance
- Drive Transfer Rate
- 600 MBps (external)
- Internal Data Rate
- 160 MBps
- Average Latency
- 11.5 ms
- Spindle Speed
- 7200 rpm
Reliability
- Non-Recoverable Errors
- 1 per 10^14
- Load / Unload Cycles
- 600,000
Expansion & Connectivity
- Interfaces
- 1 x SATA 6 Gb/s
Miscellaneous
- Compliant Standards
- BSMI, ICES-003, UL 60950-1, EN 60950-1, KC, cUL No.60950-1, China RoHS, RCM, RoHS 2011/65/EU, SVHC, FCC Part 15 J Class B, EN 55024:2010, RoHS 2 (2011/65/EU), EN 55032:2012, Directive 2014/30/EU, Directive 2015/863
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 60 °C
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Operating
- 5 - 90%
