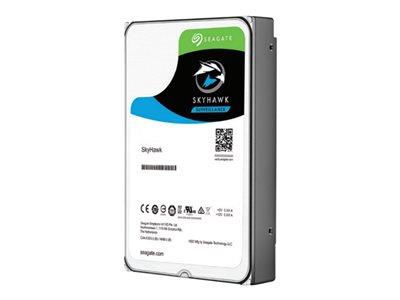

Seagate 3TB SkyHawk 3.5" SATA 6Gb/s 256MB Surveillance Hard Drive
Description
SkyHawk leverages Seagate's extensive experience in designing drives purpose-built for surveillance applications.
Highlights of the Seagate 3TB SkyHawk 3.5" SATA 6Gb/s 256MB Surveillance Hard Drive
- ImagePerfect firmware is designed to ensure seamless video footage capture in 24x7 surveillance workloads that record video from 64 HD cameras
- SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention and recovery options
- NVR-ready design allows drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed
- ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage
- Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions
- Tarnish-resistant components help protect drive from environmental elements, increasing field reliability
Specifications
Summary
- Product Description
- Seagate SkyHawk Surveillance HDD ST3000VX009 - hard drive - 3 TB - SATA 6Gb/s
- Type
- Hard drive - internal
- Capacity
- 3 TB
- Form Factor
- 3.5"
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 600 MBps
- Buffer Size
- 256 MB
- Features
- Surveillance system compatible, ImagePerfect firmware
- Dimensions (WxDxH)
- 101.85 mm x 146.99 mm x 20.2 mm
- Weight
- 490 g
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Hard drive - internal
- Capacity
- 3 TB
- Form Factor
- 3.5"
- Interface
- SATA 6Gb/s
- Buffer Size
- 256 MB
- Features
- Surveillance system compatible, ImagePerfect firmware
- Width
- 101.85 mm
- Depth
- 146.99 mm
- Height
- 20.2 mm
- Weight
- 490 g
Performance
- Drive Transfer Rate
- 600 MBps (external)
- Internal Data Rate
- 180 MBps
Reliability
- MTBF
- 1,000,000 hours
- Non-Recoverable Errors
- 1 per 10^14
- Load / Unload Cycles
- 300,000
Expansion & Connectivity
- Interfaces
- 1 x SATA 6 Gb/s
- Compatible Bay
- 3.5"
Power
- Power Consumption
- 3.5 Watt (active) , 2.5 Watt (idle) , 0.25 Watt (sleep) , 0.25 Watt (standby)
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
