Description
The Barracuda family has earned awards and accolades around the globe. This is because Seagate has demonstrated a commitment to introduce technologies that allow people to work faster, do more, and feel great about making an investment in proven technology. And, for those who want the biggest, high performance drive available, the Barracuda choice is without peer.

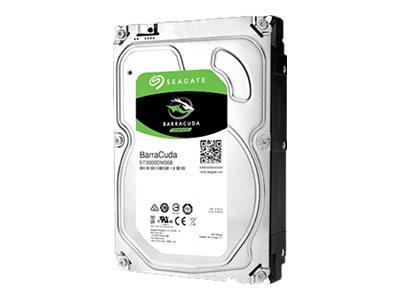

Highlights of the Seagate 1TB BarraCuda 3.5" SATA 6Gb/s 64MB Cache Hard Drive
- Double your capacity and drive down costs with the industry's first 1 TB-per-disk hard drive technology
- SATA 6 Gbps interface optimizes burst performance
- Seagate AcuTrac servo technology delivers dependable performance
- Seagate OptiCache technology boosts overall performance by as much as 45% over the previous generation
- Seagate SmartAlign technology provides a simple, transparent migration to advanced format 4K sectors
Specifications
Summary
- Product Description
- Seagate Barracuda ST1000DM010 - hard drive - 1 TB - SATA 6Gb/s
- Type
- Hard drive - internal
- Capacity
- 1 TB
- Form Factor
- 3.5"
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 600 MBps
- Buffer Size
- 64 MB
- Spindle Speed
- 7200 rpm
- Features
- Native Command Queuing (NCQ), Halogen Free, Seagate OptiCache technology, Seagate SmartAlign technology, Hot-Plug Support, Worldwide Name (WWN), TGMR recording technology, S.M.A.R.T.
- Dimensions (WxDxH)
- 101.6 mm x 146.99 mm x 20.17 mm
- Weight
- 400 g
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Hard drive - internal
- Capacity
- 1 TB
- Form Factor
- 3.5"
- Interface
- SATA 6Gb/s
- Buffer Size
- 64 MB
- Bytes per Sector
- 4096
- Features
- Native Command Queuing (NCQ), Halogen Free, Seagate OptiCache technology, Seagate SmartAlign technology, Hot-Plug Support, Worldwide Name (WWN), TGMR recording technology, S.M.A.R.T.
- Width
- 101.6 mm
- Depth
- 146.99 mm
- Height
- 20.17 mm
- Weight
- 400 g
Performance
- Drive Transfer Rate
- 600 MBps (external)
- Internal Data Rate
- 210 MBps
- Seek Time
- 8.5 ms (average)
- Track-to-Track Seek Time
- 1 ms
- Average Latency
- 4.16 ms
- Spindle Speed
- 7200 rpm
Reliability
- Non-Recoverable Errors
- 1 per 10^14
- Start / Stop Cycles
- 50,000
Expansion & Connectivity
- Interfaces
- 1 x SATA 6 Gb/s - 7 pin Serial ATA
- Compatible Bay
- 3.5"
Power
- Power Consumption
- 2 Watt (start) , 5.3 Watt (active) , 4.6 Watt (idle) , 0.94 Watt (standby) , 0.94 Watt (sleep)
Miscellaneous
- Compliant Standards
- RoHS, China RoHS
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 60 °C
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Shock Tolerance (operating)
- 80 g @ 2 ms half-sine pulse
- Shock Tolerance (non-operating)
- 350 g @ 2 ms half-sine pulse
- Vibration Tolerance (operating)
- 0.5 g @ 22-350 Hz
- Vibration Tolerance (non-operating)
- 3 g @ 22-350 Hz
