Description
Samsung's 983 DCT is a high-performance solution for servers that need enhanced data reliability to safeguard critical data, from content delivery networks (CDNs) to big data, artificial intelligence (AI) and Internet of Things (IoT) applications. Available in two form factors, U.2 and M.2., the 983 DCT's NVMe interface empowers blazing-fast speed, high responsiveness and a high Quality of Service (QoS).

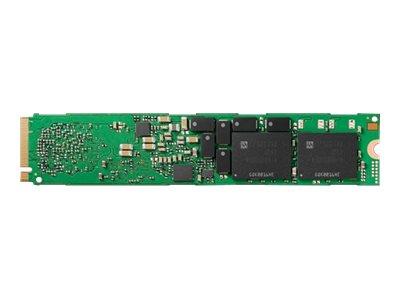

Highlights of the Samsung 960GB 983DCT M.2 NVMe SSD
- M.2 form factor and NVMe (Non-Volatile Memory Express) interface deliver blazing fast speed
- End-to-end data protection to help ensure consistency over the entire data transfer path
- Power-loss protection helps to prevent data corruption in the case of power failure
- Designed for optimized performance in server applications thanks to Samsung's proprietary 3-bit MLC V-NAND
Specifications
Summary
- Product Description
- Samsung 983 DCT MZ-1LB960NE - solid state drive - 960 GB - PCI Express 3.0 x4 (NVMe)
- Type
- Solid state drive - internal
- Capacity
- 960 GB
- Hardware Encryption
- Yes
- Encryption Algorithm
- 256-bit AES
- NAND Flash Memory Type
- 3D triple-level cell (TLC)
- Form Factor
- M.2 22110
- Interface
- PCI Express 3.0 x4 (NVMe)
- Buffer Size
- 1.5 GB
- Features
- TRIM support, Auto Garbage Collection Algorithm, Enterprise Power-Loss Protection, Advanced ECC Engine, Samsung Phoenix Controller, S.M.A.R.T.
- Dimensions (WxDxH)
- 22 mm x 110.02 mm x 3.8 mm
- Weight
- 20 g
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Solid state drive - internal
- Capacity
- 960 GB
- Hardware Encryption
- Yes
- Encryption Algorithm
- 256-bit AES
- NAND Flash Memory Type
- 3D triple-level cell (TLC)
- Form Factor
- M.2 22110
- Interface
- PCI Express 3.0 x4 (NVMe)
- Buffer Size
- 1.5 GB
- Features
- TRIM support, Auto Garbage Collection Algorithm, Enterprise Power-Loss Protection, Advanced ECC Engine, Samsung Phoenix Controller, S.M.A.R.T.
- Width
- 22 mm
- Depth
- 110.02 mm
- Height
- 3.8 mm
- Weight
- 20 g
Performance
- SSD Endurance
- 1366 TB
- Internal Data Rate
- 3000 MBps (read) / 1100 MBps (write)
- Maximum 4KB Random Write
- 38000 IOPS
- Maximum 4KB Random Read
- 400000 IOPS
Reliability
- MTBF
- 2,000,000 hours
Expansion & Connectivity
- Interfaces
- 1 x PCI Express 3.0 x4 (NVMe) - M.2 Card
- Compatible Bay
- M.2 22110
Power
- Power Consumption
- 7.5 Watt (read) , 7.2 Watt (write) , 2.6 Watt (idle max)
Software & System Requirements
- Software Included
- Samsung SSD Magician DC
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
- Shock Tolerance (operating)
- 1500 g @ 0.5 ms half-sine
