Description

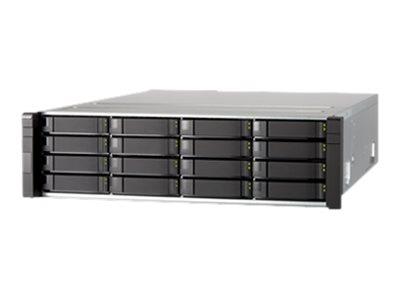

The EJ1600 expansion enclosure is designed for expanding the storage space on a QNAP Enterprise ZFS NAS by connecting multiple expansion enclosures via high-speed mini SAS cables. Featuring SAS interface on the chassis, the EJ1600 ensures fast data passthrough from SAS-enabled Enterprise ZFS NAS even when using SATA hard drives. This is especially useful for virtualization applications and large data applications that require high-performance interconnection, such as video surveillance, archiving large data, and TV broadcast storage, to provide businesses with optimized efficiency and maximized ROI.
Highlights of the QNAP EJ1600 Expansion 18 Bay Rackmount
- Simple and flexible storage expansion for Enterprise ZFS NAS
- Dual path design to ensure continuous operations
- Missing Mode protection
- High density, high efficiency and highly scalable
- Powerful QES Storage Manager
Specifications
Summary
- Product Description
- QNAP EJ1600 - storage enclosure
- Device Type
- Storage enclosure
- Enclosure Type
- Rack-mountable - 3U
- Installed Devices / Modules Qty
- 0 (installed) / 16 (max)
- Supported Drives
- SATA-600 / SAS-2
- Built-in Devices
- Led panel
- Hard Drive
- No HDD
- Power
- AC 120/230 V - 50/60 Hz
- Dimensions (WxDxH)
- 44.62 cm x 61.8 cm x 13.2 cm
- Weight
- 24.11 kg
Detailed Specification
General
- Device Type
- Storage enclosure
- Enclosure Type
- Rack-mountable - 3U
Chassis
- Built-in Devices
- Led panel
- Installed Devices / Modules Qty
- 0
- Supported Devices / Modules Qty
- 16
- Supported Drives
- SATA-600 / SAS-2
Processor
- CPU
- No CPU
Hard Drive
- Type
- No HDD
Expansion / Connectivity
- Expansion Bays
- 16 (total) / 16 (free) x hot-swap - 2.5" / 3.5" shared
- Interfaces
- 2 x SAS 6Gb/s (input) - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) , 2 x SAS 6Gb/s (output) - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) , 4 x serial (management) - 9 pin D-Sub (DB-9)
Miscellaneous
- Features
- Hot-swappable fans
- Cables Included
- 1 x SAS cable
- Included Accessories
- Rail kit
Power
- Power Device
- 2 x internal power supply - hot-plug
- Max Supported Qty
- 2
- Power Redundancy Scheme
- 1+1
- Voltage Required
- AC 120/230 V - 50/60 Hz
- Power Consumption Operational
- 344.19 Watt
- Power Provided
- 450 Watt
Dimensions & Weight
- Width
- 44.62 cm
- Depth
- 61.8 cm
- Height
- 13.2 cm
- Weight
- 24.11 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
