Description
This Philips monitor offers 100 W power delivery and a simple laptop docking solution. One USB dual mesh cable with Type-C and A connectors delivers video, Ethernet, power charge and DisplayLink functions. Windows Hello webcam offers greater security.

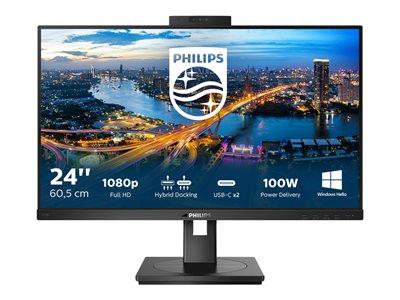

Highlights of the Philips B Line 243B1JH 24" 1920x1080 4ms HDMI DisplayPort USB-C IPS LED Monitor
- USB-C enables laptop power charging directly from a monitor
- IPS technology for full colors and wide viewing angles
- LowBlue Mode for easy-on-the-eyes productivity
- Securely sign in with pop-up webcam with Windows Hello
- PowerSensor saves up to 80% energy costs
- LightSensor for the perfect brightness with minimal power
- Built-in USB docking simplifies your connections
- DisplayPort-out for connecting additional displays
-
PowerSensor
PowerSensor is a built-in'people sensor' that transmits and receives harmless infrared signals to determine if the user is present and then automatically reduces monitor brightness when then user steps away from the desk, cutting energy costs by up to 80 percent and prolonging monitor life -
USB Docking
Philips USB-docking monitors deliver universal port replication for simple, clutter-free notebook connection. Securely connect to networks and transmit data, video and audio from a laptop using just a single USB cable. What's more, you can dock with a USB Type-C port for additional power charging. With docking monitors with built-in DisplayLink Technology, users can benefit from forwards and backwards USB compatibility with virtually any recent notebook. USB docking can boost business productivity and reduce costs. -
USB Type-C connection
This Philips display features a built-in USB type-C docking station with power delivery. With intelligent and flexible power management, you can power charge your compatible* laptop directly. Its slim, reversible USB-C connector allows for easy, one-cable docking. Simplify by connecting all your peripherals like keyboard, mouse and your RJ-45 Ethernet cable to the monitor's docking station. You can watch high-resolution video and transfer data at super-speed, while powering up and re-charging your notebook at the same time. -
LightSensor
LightSensor uses a smart sensor to adjust the picture brightness depending on the light conditions in the room for the perfect picture with minimal power usage.
Specifications
Summary
- Product Description
- Philips B Line 243B1JH - LED monitor - Full HD (1080p) - 24"
- Device Type
- LED-backlit LCD monitor - 24"
- Energy Class
- Class E
- Energy Consumption per Year
- 27 kWh
- Power Consumption (On mode)
- 15 W
- Features
- 2.0 megapixel camera, Gigabit Ethernet network adapter, USB 3.2 Gen 1 hub, USB PD 100 Watt
- Panel Type
- IPS
- Aspect Ratio
- 16:9
- Native Resolution
- Full HD (1080p) 1920 x 1080 at 75 Hz
- Pixel Pitch
- 0.2745 mm
- Brightness
- 250 cd/m²
- Contrast Ratio
- 1000:1 / 50000000:1 (dynamic)
- Response Time
- 4 ms (grey-to-grey)
- Colour Support
- 16.7 million colours
- Colour Gamut
- 105% sRGB (CIE 1931), 88% (NTSC 1976)
- Input Connectors
- HDMI, DisplayPort, USB-C
- Built-in Ethernet
- Yes
- Display Position Adjustments
- Height, pivot (rotation), swivel, tilt
- Screen Coating
- Anti-glare, 3H Hard Coating, Haze 25%
- Voltage
- AC 120/230 V (50/60 Hz)
- Colour
- Black texture
- Dimensions (WxDxH) - with stand
- 54 cm x 20.5 cm x 50.1 cm
- Weight
- 4.88 kg
- Environmental Standards
- TCO Certified Displays 8, TCO Certified Edge Displays, ENERGY STAR Qualified
- Compliant Standards
- Plug and Play, FCC Class B certified, TUV GS, ICES-003, SEMKO, CB, TUV Ergo, DDC/CI, RoHS, Lead-Free, CU-EAC, BFR-free, Ukraine, PVC-free, Mercury-free, EAEU RoHS
Detailed Specification
General
- Display Type
- LED-backlit LCD monitor / TFT active matrix
- Energy Class
- Class E
- Energy Consumption per Year
- 27 kWh
- Diagonal Size
- 24"
- Viewable Size
- 23.8"
- Built-in Devices
- 2.0 megapixel camera, Gigabit Ethernet network adapter, USB 3.2 Gen 1 hub
- USB Power Delivery
- 100 Watt
- Panel Type
- IPS
- Aspect Ratio
- 16:9
- Native Resolution
- Full HD (1080p) 1920 x 1080 at 75 Hz
- Pixel Pitch
- 0.2745 mm
- Pixel Per Inch
- 93
- Brightness
- 250 cd/m²
- Contrast Ratio
- 1000:1 / 50000000:1 (dynamic)
- Colour Support
- 16.7 million colours
- Colour Gamut
- 105% sRGB (CIE 1931), 88% (NTSC 1976)
- Response Time
- 4 ms (grey-to-grey)
- Vertical Refresh Rate
- 48 - 75 Hz
- Horizontal Refresh Rate
- 30 - 85 kHz
- Horizontal Viewing Angle
- 178
- Vertical Viewing Angle
- 178
- Screen Coating
- Anti-glare, 3H Hard Coating, Haze 25%
- Backlight Technology
- WLED
- OSD Languages
- Multilingual
- Features
- sRGB colour management, PowerSensor, SmartImage, Low Blue Light Mode, Flicker Free technology, Adaptive-Sync technology, DisplayLink Technology, LightSensor, EasyRead, Windows 10 Hello, HBR3 for USB-C
- Colour
- Black texture
- Dimensions (WxDxH)
- 54 cm x 20.5 cm x 50.1 cm - with stand
- Weight
- 4.88 kg
Audio
- Type
- Speakers - stereo
- Output Power / Channel
- 3 Watt
Connectivity
- Interfaces
- DisplayPort 1.4 (HDCP 1.4) , HDMI (HDCP 1.4) , USB-C 3.2 Gen 1 upstream (HDCP 1.4 / power up to 100W) , USB-C , USB 3.2 downstream (fast charging) , 3 x USB 3.2 downstream , Audio line-out , Network (RJ-45) , DisplayPort output
Mechanical
- Display Position Adjustments
- Height, pivot (rotation), swivel, tilt
- Tilt Angle
- -5/+30
- Swivel Angle
- 360
- Rotation Angle
- 180
- Height Adjustment
- 150 mm
- VESA Mounting Interface
- 100 x 100 mm
Miscellaneous
- Features
- Security lock slot (cable lock sold separately), wake on LAN, DisplayPort Alt Mode
- Cables Included
- 1 x DisplayPort cable , 1 x USB-C cable , 1 x HDMI cable
- MTBF
- 70,000 hour(s)
- Compliant Standards
- Plug and Play, FCC Class B certified, TUV GS, ICES-003, SEMKO, CB, TUV Ergo, DDC/CI, RoHS, Lead-Free, CU-EAC, BFR-free, Ukraine, PVC-free, Mercury-free, EAEU RoHS
- Security Slot Type
- Kensington security slot
Power
- Input Voltage
- AC 120/230 V (50/60 Hz)
- Power Consumption (On mode)
- 15 W
- Power Consumption SDR (On mode)
- 15 kWh/1000h
- Power Consumption (Typical)
- 14.2 Watt
- Power Consumption Stand by
- 0.35 Watt
Software / System Requirements
- Included Software
- Philips SmartControl
Dimensions & Weight
- Dimensions & Weight Details
- With stand - width: 54 cm - depth: 20.5 cm - height: 50.1 cm - weight: 4.88 kg , Without stand - width: 54 cm - depth: 5.1 cm - height: 32.3 cm - weight: 3.27 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 60 cm
- Shipping Depth
- 19.8 cm
- Shipping Height
- 46.5 cm
- Shipping Weight
- 6.94 kg
Environmental Standards
- TCO Certified
- TCO Certified Displays 8, TCO Certified Edge Displays
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 8.0
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 20 - 80%
