Description
Easily install medium to large displays with this simple, intuitive mounting solution. Cables are easily managed behind the display with large access ports in the wall plate. Effortlessly achieve the desired display position with smooth sliding along the mount's horizontal wall plate rails.

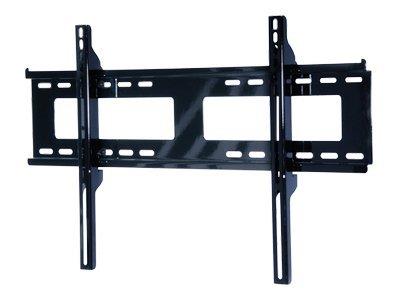

Highlights of the Peerless-AV Universal Flat Wall Mount for 37" to 75" Displays
- For LCD/Plasma screens up to 56" in size, up to 80kg (175lbs) in weight
- Universal mounting pattern accommodates mounting holes spaced up to 730mm (h) x 433mm (v)
- Open wall plate design allows for greater access to electrical and connection points
- Horizontal screen adjustment up to 200mm (8") for centring on wall
- Low profile design holds screen 43mm from wall
- UL/TUV safety certified
Specifications
Summary
- Product Description
- Peerless PARAMOUNT Universal Flat Wall Mount PF650 - mounting kit - for flat panel
- Product Type
- Mounting kit
- Mounting Components
- Wall plate, bracket adapter
- Dimensions (WxDxH)
- 80.8 cm x 4 cm x 45.7 cm
- Recommended Use
- Flat panel
- Recommended Display Size
- 39"-75"
- Max Mounting Pattern Size
- 742 x 405 mm
- Max Load Weight
- 68 kg
- Material
- Cold-rolled steel
- Colour
- Gloss black
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Width
- 80.8 cm
- Depth
- 4 cm
- Height
- 45.7 cm
- Material
- Cold-rolled steel
- Colour
- Gloss black
AV Furniture
- Type
- Mounting kit
- Mounting Components
- Wall plate, bracket adapter
- Recommended Use
- Flat panel
- Max Mounting Pattern Size
- 742 x 405 mm
- Recommended Display Size
- 39"-75"
- Max Load Weight
- 68 kg
- Features
- Scratch-resistant
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
