Description
Ideally suited for large LCD and plasma screens, the SmartMount ST650P tilting wall mount allows you to mount your LCD/plasma screen quickly and easily and tilt it forward/back for an improved viewing angle.
Highlights of the Peerless-AV SmartMount Universal Tilt Wall Mount for 37" to 75" Displays
- Quick and easy to install - screen plates easily hook onto wall plate for fast installation
- For LCD/Plasma screens up to 56" in size, up to 80kg (175lbs) in weight
- Tilt mechanism allows screen to be angled up to 15° forward and 5° back in one motion, optional tilt lock in 5° increments - easy-grip ratcheting handle locks angle in place
- Universal mounting pattern accommodates mounting holes up to 749mm (h) x 449mm (v)
- Horizontal screen adjustment up to 200mm (8") for centring screen on wall
- UL/TUV safety certified
Specifications
Summary
- Product Description

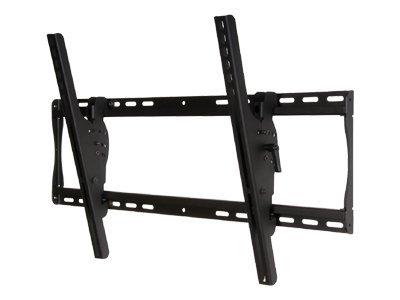

- Peerless SmartMount Universal Tilt Wall Mount ST650P - mounting kit - for LCD display
- Product Type
- Mounting kit - wall-mountable
- Mounting Components
- Bracket, tilt wall plate
- Dimensions (WxDxH)
- 79.4 cm x 13.7 cm x 42.9 cm
- Adjustable Depth
- 6.7-13.7 cm
- Tilt
- -5° to 15°
- Adjustments
- Tilt
- Weight
- 3.7 kg
- Recommended Use
- LCD display
- Recommended Display Size
- 39"-75"
- VESA Mounting Interface
- 700 x 400 mm
- Max Mounting Pattern Size
- 750 x 405 mm
- Max Load Weight
- 79 kg
- Colour
- Black
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Width
- 79.4 cm
- Depth
- 13.7 cm
- Height
- 42.9 cm
- Adjustable Depth
- 6.7-13.7 cm
- Weight
- 3.7 kg
- Colour
- Black
AV Furniture
- Type
- Mounting kit
- Mounting Components
- Bracket, tilt wall plate
- Recommended Use
- LCD display
- Placing / Mounting
- Wall-mountable
- VESA Mounting Interface
- 700 x 400 mm
- Max Mounting Pattern Size
- 750 x 405 mm
- Recommended Display Size
- 39"-75"
- Tilt
- -5° to 15°
- Adjustments
- Tilt
- Max Load Weight
- 79 kg
- Finish
- Powder coated
- Features
- Sorted-For-You
Dimensions & Weight Details
- Shipping Dimensions (WxDxH) / Weight
- 84.3 cm x 27.2 cm x 7.5 cm / 4.7 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
