Description

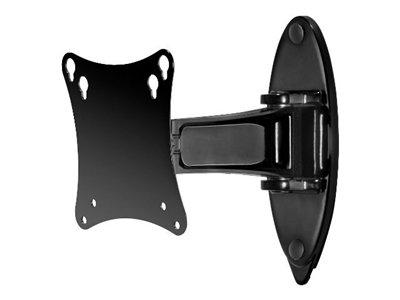

Ideally suited for small LCD screens, the SmartMount SP730P pivoting wall mount gives you a wide range of screen adjustment to obtain a better viewing angle. The SP730P allows you to tilt your screen forward or back, pan left or right and even extend your flat panel screen away from the wall.
Highlights of the Peerless-AV SmartMount Universal Pivot Wall Mount For 10"- 29" Displays
- Quick and easy to install
- Ideally suited for LCD screens up to 24" in size, up to 11kg (25lbs) in weight
- Accommodates VESA® 75 and 100 mounting patterns
- One touch tilt allows screen to be angled forwards/back up to 35°
- Screen can pan left/right up to 90° in each direction
- Single arm construction allows screen to be extended up to 237mm from wall
- Folds flat against wall to 47mm depth
- Roll adjustment allows the screen to be turned +/- 7° even when installed, ensuring perfect alignment
- Integrated cable management controls connecting cables with movement of arm
- UL/TUV safety certified
Specifications
Summary
- Product Description
- Peerless SmartMount Pivot Wall Mount SP730P - mounting kit - for LCD display (Tilt & Swivel)
- Product Type
- Mounting kit (Tilt & Swivel) - wall-mountable
- Mounting Components
- Pivot wall mount
- Weight
- 80 g
- Recommended Use
- LCD display
- Recommended Display Size
- 10"-29"
- VESA Mounting Interface
- 100 x 100 mm, 75 x 75 mm
- Max Load Weight
- 11.3 kg
- Material
- Anodised aluminium
- Colour
- Black
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Weight
- 80 g
- Material
- Anodised aluminium
- Colour
- Black
AV Furniture
- Type
- Mounting kit
- Mounting Components
- Pivot wall mount
- Design
- Tilt & Swivel
- Recommended Use
- LCD display
- Placing / Mounting
- Wall-mountable
- VESA Mounting Interface
- 100 x 100 mm, 75 x 75 mm
- Recommended Display Size
- 10"-29"
- Max Load Weight
- 11.3 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
