Description

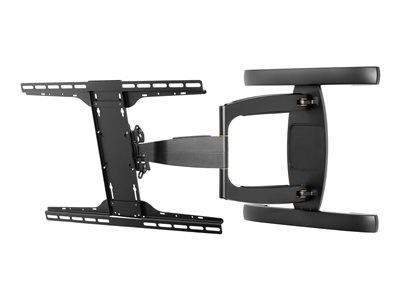

Ideally suited for extra large LCD and plasma screens, the SmartMount SA761PU articulating wall mount gives you the widest range of screen adjustment to obtain the best possible viewing angle. Tilt back or forward, pan left or right, even extend your flat panel screen away from the wall - the SA761PU has it all.
Highlights of the Peerless-AV SmartMount Articulating Wall Mount for 39"-75" Displays
- Accommodates flat panels screens up to 63" in size, up to 59kg (130lbs) in weight
- Universal mounting pattern accommodates mounting holes up to 686mm (h) x 439mm (v)
- One-touch adjustment allows screen to be tilted forwards up to 15° or back up to 5° without the use of tools, full 180° range of motion for the best possible viewing angle
- Double arm construction for extra strength and smooth motion - arms extend from 113mm to 700mm from wall
- Roll adjustment allows the screen to be turned ±5°, together with 25mm (1") vertical adjustment even when installed for screen perfect alignment
- UL/TUV safety certified
-
Clean application
Built in cable management system keeps cables organized and protected. -
Clean appearance
Open wall plate design for installation flexibility. -
Post installation leveling
±5 degrees of roll eases mounting frustration.
Specifications
Summary
- Product Description
- Peerless Universal Full-Motion Plus Wall Mount SA761PU - mounting kit - for flat panel
- Product Type
- Mounting kit - wall-mountable
- Mounting Components
- Wall mount
- Dimensions (WxDxH)
- 72.8 cm x 11.3 cm x 45.7 cm
- Adjustable Depth
- 11.3-70 cm
- Adjustments
- Tilt
- Weight
- 18 kg
- Recommended Use
- Flat panel
- Recommended Display Size
- 39"-75"
- VESA Mounting Interface
- 600 x 400 mm
- Max Load Weight
- 56.7 kg
- Material
- Fused epoxy
- Colour
- Gloss black
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Width
- 72.8 cm
- Depth
- 11.3 cm
- Height
- 45.7 cm
- Adjustable Depth
- 11.3-70 cm
- Weight
- 18 kg
- Material
- Fused epoxy
- Colour
- Gloss black
AV Furniture
- Type
- Mounting kit
- Mounting Components
- Wall mount
- Recommended Use
- Flat panel
- Placing / Mounting
- Wall-mountable
- VESA Mounting Interface
- 600 x 400 mm
- Cable Management
- Cable Management System (CMS)
- Recommended Display Size
- 39"-75"
- Adjustments
- Tilt
- Max Load Weight
- 56.7 kg
- Features
- Horizontal or vertical screen orientation, swivel base, adjustable depth, scratch-resistant, swivel adjustment
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
