Description

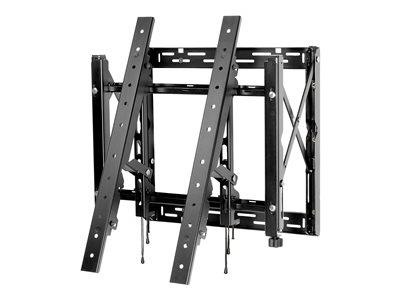

Video walls should be easy to configure, quick to install, and a snap to maintain. No, it's not a dream, it's the DS-VW765-POR full service video mount from Peerless-AV. Create any configuration imaginable, but leave the math to the DS-VW765-POR. Just install the first mount. Then use the customizable wall spacers to perfectly place each additional screen. No measuring, no guessing, no mistakes. It couldn't be easier. This innovative design combined with a mount that is ready-to-install right out of the box makes this the fastest installing video wall system ever. Now in a design that is 20% lighter than previous models and loaded with time saving features like no-tool-required micro-adjustments and easy-access to any display maintenance it's the ultimate video wall mounting solution.
Highlights of the Peerless-AV Full Service Video Wall Mount - Portrait
- Modular mount for unlimited video wall display configurations
- Custom wall plate spacers eliminate the guesswork and on-site installation calculations
- Tool-less micro adjustments at 8 point seamlessly align the displays
- Displays click securely into place against the wall with spring -loaded mechanism
- Displays and mounts sit flush against the wall for a clean side appearance
- Pull-out/prop-open mechanism provides quick service access
- Integrated cable management tie-backs make display-to-display cabling simple
Specifications
Summary
- Product Description
- Peerless-AV SmartMount DS-VW765-POR - mounting kit - for flat panel
- Product Type
- Mounting kit - wall-mountable
- Mounting Components
- Wall mount
- Adjustments
- Tilt
- Recommended Use
- Flat panel
- Recommended Display Size
- 42"-65"
- VESA Mounting Interface
- 200 x 200 mm, 400 x 600 mm
- Max Mounting Pattern Size
- 400 x 600 mm
- Max Load Weight
- 68 kg
- Colour
- Black
Detailed Specification
General
- Colour
- Black
AV Furniture
- Type
- Mounting kit
- Mounting Components
- Wall mount
- Recommended Use
- Flat panel
- Placing / Mounting
- Wall-mountable
- VESA Mounting Interface
- 200 x 200 mm, 400 x 600 mm
- Max Mounting Pattern Size
- 400 x 600 mm
- Cable Management
- Integrated cable management
- Recommended Display Size
- 42"-65"
- Adjustments
- Tilt
- Max Load Weight
- 68 kg
- Features
- Spring-loaded slots
