Description
NETGEAR’s family of reliable, high-performance ProSAFE Gigabit Layer 3 Stackable Switches provides maximum throughput and flexibility for demanding networks, with all the Layer 3 features you expect— and the future proofing you want. The ProSAFE GSM7328S, GSM7328FS or GSM7352S are ideal as a backbone switches, Gigabit servers, or as the robust core of a demanding, all-Gigabit network. These ProSAFE Gigabit switches can be used to inexpensively off-load routers that are segmenting your network and lay the groundwork for new IP-based services. All three switches include four hot-swappable, high-speed module bays which offer options for standards-based10G connectivity or for 48Gbps stacking within the switch family. For maximum flexibility, the GSM7328S and GSM7352S offer 24 and 48 Copper Gigabit Ports, respectively, while the GSM7328FS offers 24 SFP slots for high-density fiber deployments. The non-blocking design of the switch delivers simultaneous, full wire-speed, low-latency throughput to all ports.
Highlights of the NetGear Next-Gen Edge M5300-28GF3 Managed Switch
- Embedded 10 Gigabit 10GBase-T/SFP+ uplinks
- Top of the line access layer for 10GbE backbones
- Line-rate for virtualization and convergence
- Innovative multi-vendor Auto-iSCSI optimization
- You can save costs now and should applications arise, there's seamless upgrade path with layer 3 licenses
- Two embedded 10 Gigabit interfaces streamline network uplinks with SFP+ and 10GBase-T (RJ45) combo ports
- Meshed stacking for multi-resiliency and advanced load balancing capabilities
- Highest availability with sub-second master failover for L3 seamless switching
- Distributed link aggregation for active-active connections
- Standard USB port for local storage, logs, configuration or image files
- Dual firmware image and configuration file for updates with minimum service interruption
- Industry standard command line interface (CLI) for IT admins used to other vendor's commands and scripting
- Fully functional Web console (GUI) for IT admins who prefer an easy to use graphical interface
Specifications
Summary
- Product Description

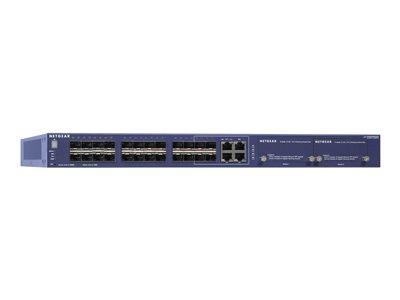

- Netgear Next-Gen Edge Managed Switch M5300-28GF3 - switch - 24 ports - Managed
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- Enclosure Type
- 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x Gigabit SFP + 4 x shared 10/100/1000
- Performance
- Switching capacity: 144 Gbps , Throughput: 107.1 Mbps
- Capacity
- 224 , IP router interfaces: 128
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9000 bytes
- Routing Protocol
- OSPF, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
- Features
- Layer 3 switching, BOOTP support, ARP support, VLAN support, IGMP snooping, traffic shaping, DiffServ support, Weighted Round Robin (WRR) queuing, store and forward, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, MLD snooping, IPv4 support, DHCP relay, Link Aggregation Control Protocol (LACP), Dynamic VLAN Support (GVRP), Class of Service (CoS)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP)
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 44 cm x 39.1 cm x 4.3 cm
- Weight
- 6.3 kg
- Manufacturer Warranty
- NETGEAR lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- Enclosure Type
- Desktop 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x Gigabit SFP + 4 x shared 10/100/1000
- Performance
- Switching capacity: 144 Gbps , Throughput: 107.1 Mbps
- Capacity
- 224 , IP router interfaces: 128
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9000 bytes
- Routing Protocol
- OSPF, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
- Encryption Algorithm
- TLS 1.0, SSL 3.0
- Authentication Method
- RADIUS, TACACS+
- Features
- Layer 3 switching, BOOTP support, ARP support, VLAN support, IGMP snooping, traffic shaping, DiffServ support, Weighted Round Robin (WRR) queuing, store and forward, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, MLD snooping, IPv4 support, DHCP relay, Link Aggregation Control Protocol (LACP), Dynamic VLAN Support (GVRP), Class of Service (CoS)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP)
- Processor
- 1: 666 MHz
- RAM
- 256 MB
- Flash Memory
- 32 MB
- Status Indicators
- Port transmission speed, power, status, RPS (Redundant Power Supply), link/activity
Expansion / Connectivity
- Interfaces
- 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , 1 x management (RS-232) , 24 x SFP (mini-GBIC)
- Expansion Slots
- 4 (total) / 4 (free) x Expansion Slot
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
Miscellaneous
- Cables Included
- 1 x null modem cable
- Rack Mounting Kit
- Included
- MTBF
- 117,747 hours
- Compliant Standards
- FCC Class A certified, C-Tick, CISPR 22 Class A, cUL, EN 60950, UL 1950, VCCI Class A ITE, IEC 60950, EN55024, CSA 22.2 No. 950, EN55022 Class A, EN50082-1
Dimensions & Weight
- Width
- 44 cm
- Depth
- 39.1 cm
- Height
- 4.3 cm
- Weight
- 6.3 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 0 - 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 0 - 95% (non-condensing)
