Description
The ProSAFE M6100 Switch Series consists of Gigabit access layer and 10 Gigabit distribution layer switches in NETGEAR modular chassis switch product line. The M6100 switch series offers high-quality, high-density chassis alternative to stackable switches in campus LAN and midsize organizations demanding networks. With more than 1.4 Tbps switching and routing capacity, passive backplane, management and fabric nonstop forwarding redundancy, the M6100 series delivers world-class resiliency and scalability. Ultimately, operating software and system management features take the complexity out of delivering L2/L3/L4 rich services for enterprise edge and SMB core deployments.

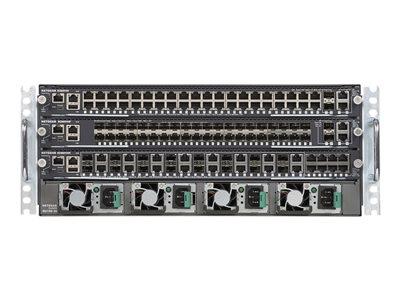

Highlights of the NetGear M6100-44G3-POE+ Chassis Starter Kit
- Proficient access layer in campus LAN networks, and competent distribution or core layer for midsize organizations networks
- Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including PBR, BGP, DCBX, PFC, ETS and FCoE FIP
- 1.4 Tbps switching and routing capacity, passive backplane, management and fabric nonstop forwarding redundancy
- Up to 144 (Gigabit) ports, or 72 (10 Gigabit) ports, or a combination of both in dense form factor models
- PoE+ (30 watts per port) and UPOE (60 watts per port) modular, flexible implementation
- Ultra-low latency and scalable table size with 32K MAC, 8K ARP/NDP, 4K VLANs, 12K routes
- Any Gigabit copper blade can receive PoE+ or UPOE daughter cards for easy upgrade / downgrade and best investment protection
- Up to 3,000W PoE budget is provided by internal power supplies when 6,000W are available with additional 1U power shelf
- All set for rapid proliferation of PoE/PoE+ devices, such as IP telephony endpoints, 802.11n / 802.11ac access points and IP security cameras
- Future-proof 60W UPOE power delivered to next-gen VDI clients or physical security devices; UPOE is backward compatible with PoE/PoE+
- Passive backplane, distributed redundant fabric and redundant management provide hitless, nonstop forwarding failover protection for always-on availability
- Redundant N+1 power protection contributes to business continuity management
- Distributed Link Aggregation across all I/O blades allows for multi-resiliency and advanced load balancing capabilities
- Multi Chassis Link Aggregation (MLAG) between two M6100 switches overcomes limitations of Spanning Tree, increasing bandwidth while preserving redundancy
- Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP) offer interoperability with PVST+ infrastructures
- DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
- Industry standard SNMP, RMON, MIB, LLDP, AAA, sFlow and RSPAN remote mirroring implementation
- Selectable service port for out-of-band Ethernet management (OOB)
- Selectable standard RS232 straight-through serial RJ45 and Mini-USB ports for local management console
- Standard USB port for local storage, logs, configuration or image files
- Dual firmware image and configuration file for updates with minimum service interruption
- Industry standard command line interface (CLI) for IT admins used to other vendors commands
- Fully functional Web console (GUI) for IT admins who prefer an easy to use graphical interface
- Single-pane-of-glass NMS300 management platform with mass-configuration support
- Advanced classifier-based, time-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports) security and prioritization
- Voice VLAN with SIP, H323 and SCCP protocols detection and LLDP-MED IP phones automatic QoS and VLAN configuration
- Efficient authentication tiering with successive DOT1X, MAB and Captive Portal methods for streamlined BYOD
- Best-in-class IPv4/IPv6 static and dynamic routing including Proxy ARP, OSPF, BGP, Policy-based routing and automatic 6-to-4 tunneling
- Enhanced IPv4/IPv6 multicast forwarding with IGMPv3/MLDv2 Querier and Control Packet Flooding protection
- High performance IPv4/IPv6 multicast routing with PIM timer accuracy and unhandled PIM (S,G, rpt) state machine events transitioning
- Advanced IPv4/IPv6 security implementation including malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
- Innovative multi-vendor Auto-iSCSI capabilities for easier virtualization optimization
- Datacenter-ready features include DCBX (802.1Qaz), Priority Flow Control (PFC), Enhanced Transmission Selection (ETS) and FCoE FIP Snooping
Specifications
Summary
- Product Description
- NETGEAR M6100-44G3-POE+ - Starter Kit - switch - 44 ports - Managed - rack-mountable
- Device Type
- Switch - 44 ports - L4 - Managed
- Enclosure Type
- Rack-mountable 4U
- Subtype
- Gigabit Ethernet
- Ports
- 40 x 10/100/1000 + 2 x 10Gb Ethernet + 2 x 10 Gigabit SFP+
- Power Over Ethernet (PoE)
- PoE+
- Capacity
- Virtual interfaces (VLANs): 4000 , Static routes: 512 , RIP routes: 512 , OSPF routes: 12000 , BGP routes: 12000 , ARP entries: 8000 , IPv4 forwarding table entries: 1536 , IPv6 forwarding table entries: 512
- MAC Address Table Size
- 32000 entries
- Jumbo Frame Support
- 12KB
- Routing Protocol
- OSPF, BGP-4, RIP-1, RIP-2, BGP, IGMPv2, DVMRP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), MLDv2, PIM-SMv6, BGP for IPv6, PIM-DMv6
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI
- Features
- BOOTP support, ARP support, trunking, VLAN support, IGMP snooping, Syslog support, traffic shaping, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, priority-based flow control, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), Deficit Weighted Round Robin (DWRR), LLDP support, DHCP relay, Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Multiple VLAN Registration Protocol (MVRP), Strict Priority Queuing (SPQ), Class of Service (CoS), tagged VLAN, Generic Attribute Registration Protocol (GARP), IGMP proxy, Type of Service (ToS), DiffServ Code Point (DSCP) support, MLD proxy, FCoE Initialization Protocol (FIP)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz
- Power
- AC 120/230 V (50/60 Hz)
- Power Redundancy
- Optional
- Dimensions (WxDxH)
- 43.2 cm x 44.16 cm x 17.59 cm
- Manufacturer Warranty
- NETGEAR lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 44 ports - L4 - Managed
- Enclosure Type
- Rack-mountable 4U
- Subtype
- Gigabit Ethernet
- Ports
- 40 x 10/100/1000 + 2 x 10Gb Ethernet + 2 x 10 Gigabit SFP+
- Power Over Ethernet (PoE)
- PoE+
- Capacity
- Virtual interfaces (VLANs): 4000 , Static routes: 512 , RIP routes: 512 , OSPF routes: 12000 , BGP routes: 12000 , ARP entries: 8000 , IPv4 forwarding table entries: 1536 , IPv6 forwarding table entries: 512
- MAC Address Table Size
- 32000 entries
- Jumbo Frame Support
- 12KB
- Routing Protocol
- OSPF, BGP-4, RIP-1, RIP-2, BGP, IGMPv2, DVMRP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), MLDv2, PIM-SMv6, BGP for IPv6, PIM-DMv6
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI
- Encryption Algorithm
- AES, TLS 1.0, SSL 3.0
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- BOOTP support, ARP support, trunking, VLAN support, IGMP snooping, Syslog support, traffic shaping, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, priority-based flow control, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), Deficit Weighted Round Robin (DWRR), LLDP support, DHCP relay, Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Multiple VLAN Registration Protocol (MVRP), Strict Priority Queuing (SPQ), Class of Service (CoS), tagged VLAN, Generic Attribute Registration Protocol (GARP), IGMP proxy, Type of Service (ToS), DiffServ Code Point (DSCP) support, MLD proxy, FCoE Initialization Protocol (FIP)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz
- Processor
- 1: 800 MHz
- RAM
- 1 GB
- Flash Memory
- 64 MB
- Status Indicators
- Port transmission speed, power, status, link/activity, supervisor
Expansion / Connectivity
- Interfaces
- 40 x 1000Base-T RJ-45 PoE+ - 30 W , 2 x 10GBase-T RJ-45 , 2 x 10GBase-X SFP+ , 1 x management (Gigabit LAN) RJ-45 , 1 x serial RJ-45 , 1 x management (mini-USB) , 1 x USB Type A
- Expansion Slots
- 3 (total) / 2 (free) x Expansion Slot
- Installed Modules Qty (Max)
- 1 (installed) / 3 (max)
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 1
- Max Supported Qty
- 4
- Power Redundancy
- Optional
- Power Redundancy Scheme
- N+1
- Power Provided
- 1000 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
- 80 PLUS Certification
- 80 PLUS
- Features
- Redundant Power System (RPS) connector
Miscellaneous
- Included Accessories
- Fan tray
- Rack Mounting Kit
- Included
- Compliant Standards
- CISPR 22 Class A, cUL, EN 60950, IEC950, UL 1950, EN55024, CSA 22.2 No. 950, EN55022 Class A, EN50082-1, FCC Part 15 A, C-Tick Class A, VCCI Class A
Dimensions & Weight
- Width
- 43.2 cm
- Depth
- 44.16 cm
- Height
- 17.59 cm
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - lifetime - response time: next business day , Technical support - phone consulting - 90 days , Technical support - e-mail consulting - 90 days , Technical support - web support - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 0 - 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 0 - 95% (non-condensing)
