Description
Marketing description is not available.

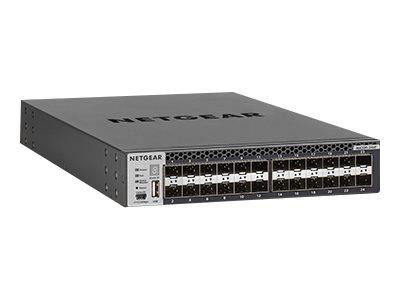

Highlights of the NETGEAR M4300 24-port 10G SFP+ Managed Switch
- Cost effective 1G access layer in campus LAN networks, and high performance 10G distribution layer for midsize organizations networks
- Zero Touch AV-over-IP with pre-configured L2 Multicast on all 1G models (1G AV encoders and decoders) and 10G models (SDVoE-ready)
- Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including Policy Based Routing, RIP, VRRP, OSPF and PIM
- Innovative mixed "Spine and Leaf", 1G and 10G stacking with nonstop forwarding and hitless failover redundancy
- Low acoustics, half-width 16-port and 24-port 10G models can be paired in a single rack space for redundant Top of Rack
- Up to 384 (Gigabit) ports, 768 (10 Gigabit) ports, 192 (40 Gigabit) ports or a combination in a stack seen as one "logical" switch
- PoE+ (30 watts per port) with hot swap, redundant power supplies and full provisioning
Specifications
Summary
- Product Description
- NETGEAR M4300-24XF - switch - 24 ports - Managed - rack-mountable
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 24 x 10GBase-X + 2 x shared 10GBase-T
- Performance
- Switching fabric bandwidth: 480 Gbps , Throughput: 357 Mpps
- Capacity
- Packet buffer size: 32 MB
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP
- Remote Management Protocol
- SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SCP, SFTP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS
- Features
- BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Non-Stop Forwarding (NSF), sFlow, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST), Management Information Base (MIB), dual firmware images, Class of Service (CoS), Precision Time Protocol (PTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), Protocol Independent Multicast (PIM)
- Compliant Standards
- IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
- Power
- AC 120/230 V
- Dimensions (WxDxH)
- 21.2 cm x 34.5 cm x 4.4 cm
- Weight
- 3.56 kg
- Localisation
- United States, Europe
- Manufacturer Warranty
- NETGEAR lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 24 x 10GBase-X + 2 x shared 10GBase-T
- Performance
- Switching fabric bandwidth: 480 Gbps , Throughput: 357 Mpps
- Capacity
- Packet buffer size: 32 MB
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP
- Remote Management Protocol
- SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SCP, SFTP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS
- Encryption Algorithm
- SHA, MD5, SSL 3.0, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, TLS 2.0
- Authentication Method
- RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Non-Stop Forwarding (NSF), sFlow, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST), Management Information Base (MIB), dual firmware images, Class of Service (CoS), Precision Time Protocol (PTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), Protocol Independent Multicast (PIM)
- Compliant Standards
- IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
- Processor
- : 800 MHz
- RAM
- 1 GB
- Flash Memory
- 256 MB
Expansion / Connectivity
- Interfaces
- 24 x 10GBase-X SFP+ , 2 x 10GBase-T RJ-45 , 1 x management (Gigabit LAN) RJ-45 , 1 x serial (RS-232) RJ-45 , 1 x console (mini-USB) , 1 x USB Type A
Power
- Power Device
- Internal power supply
- Installed Qty
- 1
- Max Supported Qty
- 1
- Power Provided
- 250 Watt
- Voltage Required
- AC 120/230 V
- Power Consumption Operational
- 87.2 Watt
- 80 PLUS Certification
- 80 PLUS
- Features
- Front-to-rear air?ow
Miscellaneous
- MTBF
- 968,447 hours
- Compliant Standards
- SCCP
- Localisation
- United States, Europe
Dimensions & Weight
- Width
- 21.2 cm
- Depth
- 34.5 cm
- Height
- 4.4 cm
- Weight
- 3.56 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
